A wall-mounted infrared patio heater with a low-glare tube, hire from
£80. It bolts to any solid wall or beam, runs off a standard socket and
shrugs off the rain, which makes it the heater we reach for when a stand
or shelter has something solid to fix it to.
Heat where a pole-clamped heater can't go
This is the wall-mounted cousin of our gazebo
heaters. Those clamp round a centre pole;
this one fixes to a wall, a beam or the upright of a marquee frame with
a bracket that tilts on an Allen key, so it suits smoking shelters, bar
servery areas, covered walkways and stands with a solid wall to work
with. It is a Trotec IR 2010 - a 2,000-watt short-wave radiant heater
with an aluminium body that weighs 2kg.
The tube is the low-glare kind, cutting the visible red light by around
80% against a standard infrared lamp while keeping the heat, and Trotec
rates it for roughly 6,000 operating hours. Like the pole-mounted
heaters, it warms people and objects directly, so the heat lands the
moment it switches on and an open door or side panel doesn't take it
with it. Nothing spins and no air moves through it either, so it
doesn't stir dust up - worth knowing if your crowd includes people
with allergies.
220-240V mains, 50/60Hz, CEE 7/7 plug on a 1.7m cable
IP65 - water-jet-proof and dustproof from all directions
165 x 595 x 105mm, 2.0kg aluminium body
Adjustable tilt bracket, wall-mounted
Where it mounts and what it needs
Any solid wall or beam, tilted to suit the space
At least 1.8m above the floor, with 50cm clear all round
Its own 13-amp socket - the switch-on surge will trip a line shared with other kit
Nothing covering the body while it runs
Wall-mounting is the whole point of this heater, so if your shelter is
a pop-up gazebo with a centre pole and no wall, the
pole-clamped heaters are the ones that fit.
Where it gets used
Outdoor Exhibition Stands
Warmth for covered stands and pitches through the winter show calendar
Smoking Shelters
Keeps the areas venues have to leave usable all year
Bars and Hospitality
Heat over servery areas and outdoor seating under canvas
Entrances and Queue Lines
Takes the edge off doorways and queuing areas on cold mornings
Marquees and Gazebos
Bolts to the frame of our marquees where a wall or beam is there to take it
Winter Trade Shows
The colder months of the NEC and ExCeL calendar, mostly
Power and positioning
At 2,000W it draws most of a 13-amp socket, so plan one socket per
heater and don't hang anything else off the same line - the brief
switch-on surge is enough to trip a breaker that is already carrying
kit. The CEE 7/7 plug sits on a 1.7m cable, so the socket wants to be
within a metre or two of the mounting spot; where there's no mains at
all we bring the power too, from a battery
generator for quiet
sites up to a diesel set for open ground. Our page on stand power and
space explains how the socket
sums work.
Mounting heights matter more than people expect: at least 1.8m above
the floor with 50cm of clearance around the body, tilted down at the
seating or standing area and never firing straight at a wall or a
curtain. The kit comes with the screws, wall plugs and the Allen key
for the tilt bracket - tell us what the wall is made of when you book
and we'll make sure the right fixings go in the van.
Ours, from Rotherham
The heaters sit on the racking at our 25,000 sq ft warehouse between
Sheffield and Doncaster, alongside the marquees and gazebos they
usually travel with. The business dates back to 1999, and the best
part of the catalogue, about 95% of it, is kit we own outright and
maintain in-house, so what turns up is what you booked, cleaned,
tested and packed by our own crew. Risk assessments and method
statements emailed to you or your venue before the event.

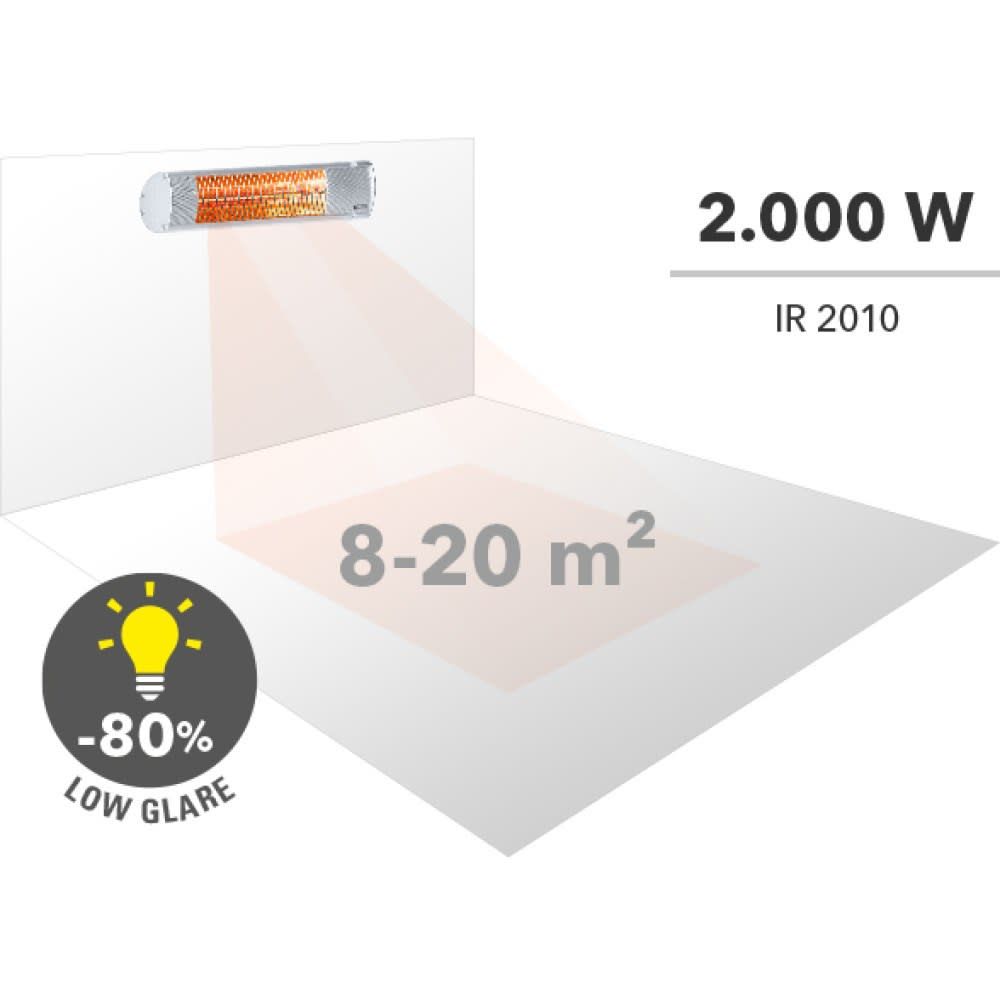

Manufacturer diagram showing the warmth throw across an 8-20 m² area

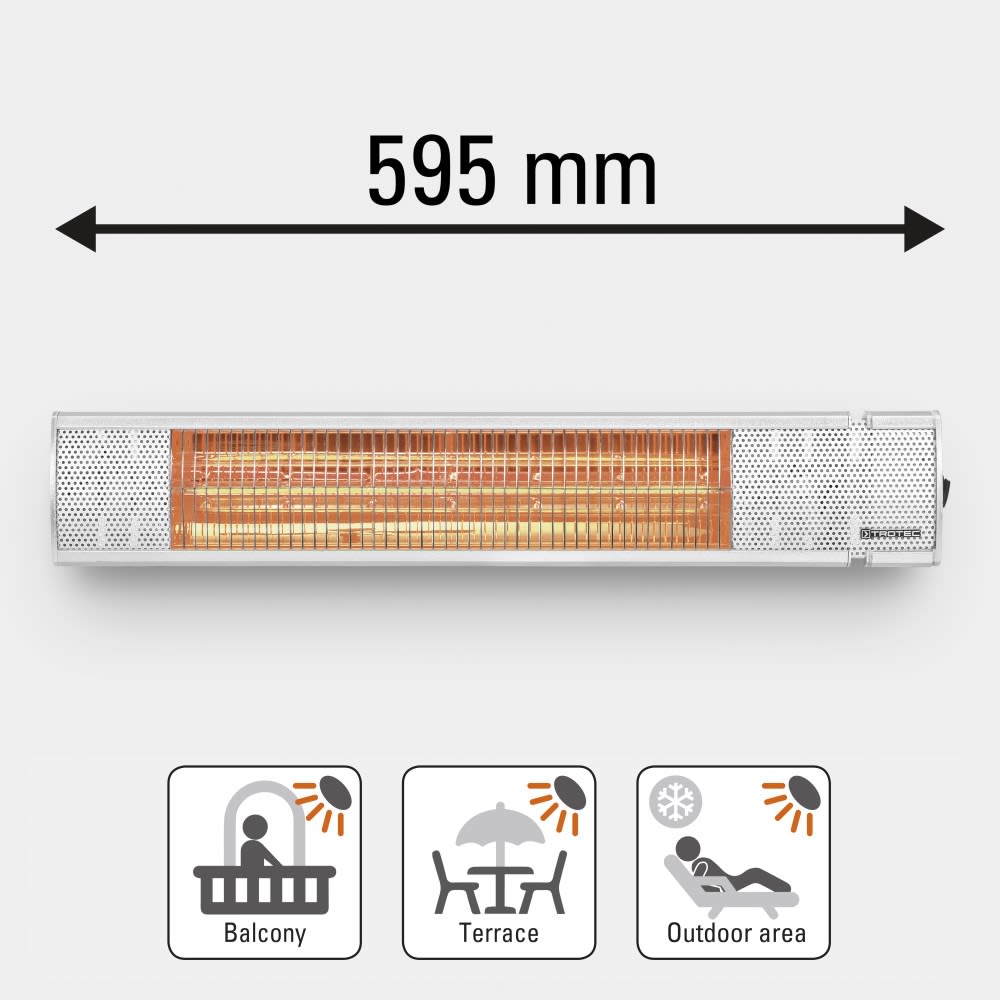

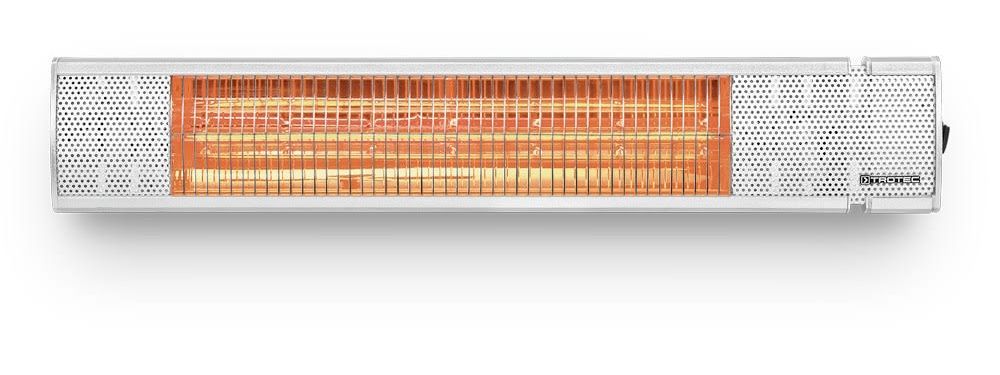

The 595mm body with the low-glare tube lit

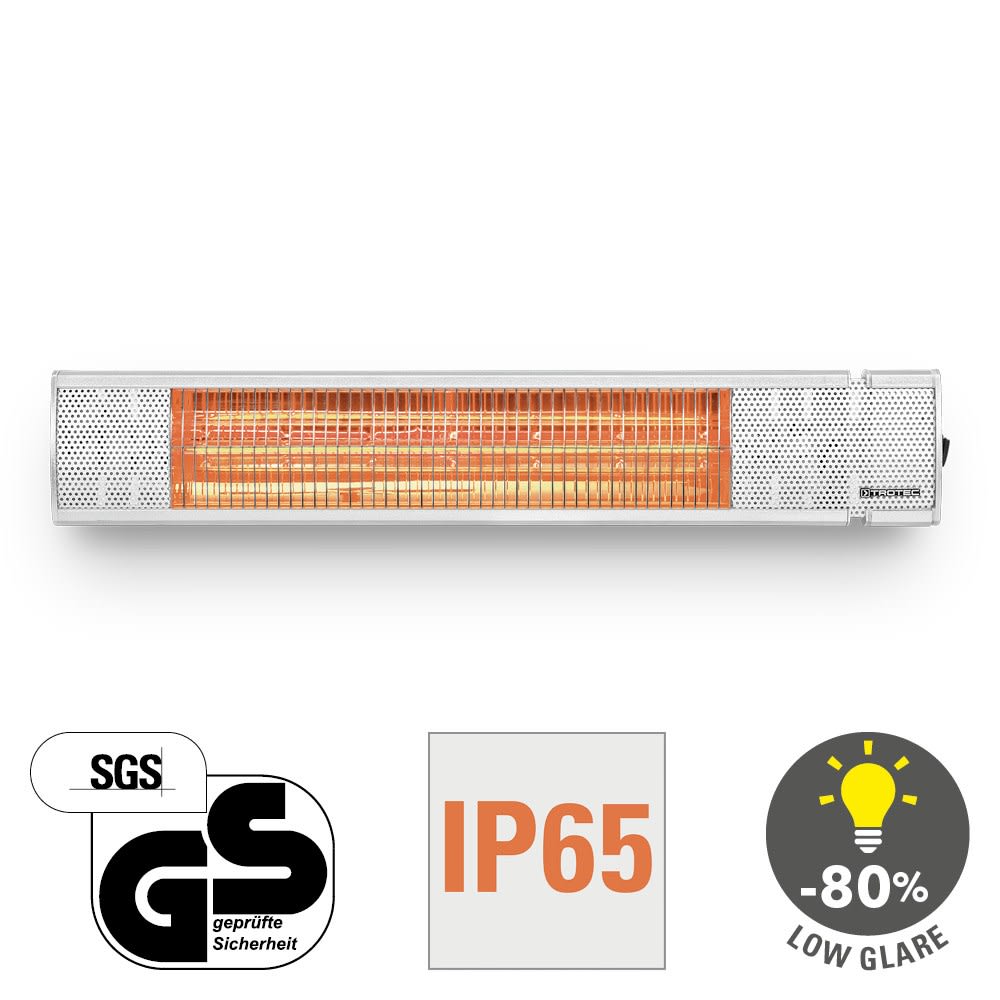

IP65 and GS certification badges on the aluminium housing
Heater questions
What can it mount to?
Any solid wall, beam or frame upright that takes screw fixings - the kit comes with screws, wall plugs and the Allen key for the tilt bracket. It is wall-mount only: there is no pole clamp on this model, so a pop-up gazebo with a centre pole needs the clamp-style gazebo heaters instead. Tell us what the surface is when you book and we'll make sure the right fixings go in the van.
How much power does it need on site?
It draws 2,000W from a standard 13-amp socket, arriving with a CEE 7/7 plug on a 1.7m cable. Because the switch-on surge will trip a breaker that is already carrying other equipment, each heater wants a socket of its own. Where the pitch has no mains at all we can quote a battery generator or a diesel set with the heater.
Can it stay out in the rain?
Yes - the housing is IP65 rated, which is water-jet-proof and dustproof from any direction, so it is built for uncovered outdoor areas as well as under canvas. The one rule is that nothing covers the body while it is running.
How much area does one heater cover?
The manufacturer's diagram rates it for roughly 8 to 20 square metres of outdoor area, depending on how open the space is and how cold the day is. Tell us what you are trying to keep warm - a servery, a queue line, a whole marquee - and the right number goes into the quote.
