Stephill SLT5000 lighting tower with four LED floodlights on a 5.4m telescopic mast

Stephill SLT5000 Lighting Tower Hire

Hire From £375.

The SLT5000 is a portable LED lighting tower built by Stephill Generators, a UK manufacturer that's been making generators and lighting equipment in Wellingborough since 1985. It puts four 200-watt LED heads on a 5.4 metre hand-cranked mast, which is enough to light over 3,200 square metres at 20 lux average. Each head tilts and turns independently, so you can angle them for a single direction or set them in a 360-degree spread depending on what you're covering.

Under the mast is a Yanmar L70 diesel engine coupled to a Meccalte alternator. That gives you 4.5 kVA of generator output as well as the lights, which means you can run power tools, PA systems or catering equipment off the same unit while the lamps are on. It'll run for 52 hours on lights-only mode from its 34-litre tank, or 29 hours at 75% generator load. Sound level is 66 to 67 dBA at 7 metres - quiet enough that people can hold a conversation nearby without shouting, which makes it suitable for outdoor events and sites where noise is a concern.

The tower weighs 380 kg dry and sits on a wheeled chassis with forklift pockets and a central lifting eye, so it's easy enough to move around site or load onto a tail lift. One person can raise the mast by hand - there's no hydraulic system to fail - and the 2020-onward models include an anti-collapse safety device that locks the mast if the winch cable breaks. The heads are IP66 and IK10 rated, which means rain, dust and the odd knock won't be an issue.

We've been hiring out event equipment from our 25,000 sq ft warehouse near Sheffield since 1999. We deliver in our own vehicles and can supply external fuel tanks for longer runs, along with full fuel management if you need it. Every hire includes £5 million public liability insurance with indemnity to principal cover, and risk assessments and method statements emailed to your venue before the event. We deliver regularly to the NEC Birmingham, ExCeL London and Manchester Central, and we're based in Rotherham - five minutes from the M1, M18 and A1.

Get a Quote
Stephill SLT5000 lighting tower on its transport trailer with tow hitch and stabiliser legs

SLT5000 at a glance

m² at 20 lux
>3,200
lumens
100,000
hours lights-only runtime
52
metre mast height
5.4

Specification

Manufacturer Stephill Generators
Model SLT5000
Generator output 4.5 kVA / 3.6 kW (230/115V, 50Hz)
Engine Yanmar L70NES diesel, single cylinder, air cooled
LED lamps 4 x 200 W, 100,000 lm total
Colour temperature 5,000 - 6,500 K
Mast height 5.4 m hand-operated
Coverage >3,200 m² at 20 lux (single direction)
Fuel tank 34 litres
Runtime 52 hours lights-only / 29 hours at 75% load
Noise level 66-67 dBA @ 7 m
Weight 380 kg dry
Dimensions (transport) 1,200 x 860 x 1,930 mm
Protection IP66 / IK10

Suitability

  • Indoors on Artificial Grass
  • Indoors on Hard Surface
  • Outdoors on Concrete
  • Outdoors on Grass
  • Outdoors on Grass/Hard Surface Mix
  • Outdoors on Hard Surface
  • Outdoors on Wood Chip

Generator and power output

The SLT5000 works as a generator as well as a light tower. The lights draw 800W total, leaving around 2.8 kW of continuous capacity at 230V for other equipment - or you can switch to 115V if that's what your site tools run on. The control panel has a Deep Sea DSE3110 module with overload protection, emergency stop, fuel gauge and engine monitoring, so you can see what's going on without pulling out a multimeter. If you're not sure whether it'll cover your kit list, send it through and we'll work out the load for you.

What's included

  • The Stephill SLT5000 lighting tower, delivered fully fuelled
  • Setup and breakdown by our own team
  • £5 million public liability insurance with indemnity to principal
  • Risk assessments and method statements emailed to you or your venue before the event
  • 24-hour telephone support
  • Optional external fuel tank for long-term hire
  • Optional fuel management plan and refuelling arrangement

Delivery charges and minimum order values may apply depending on location and duration.

Which locations do we cover?

From our warehouse in Rotherham we're five minutes from the A1, M1 and M18, which puts us within easy reach of Yorkshire, Greater Manchester and the Midlands. We deliver regularly to NEC Birmingham, ExCeL London, Manchester Central and Olympia London, as well as most other major UK venues. Europe-wide delivery is available for larger packages.

If you need more power or wider coverage, we also hire larger diesel generators, festoon lighting, temporary fencing and ground protection mats for a complete outdoor event or site setup.

Gallery

  • Stephill SLT5000 lighting tower with four LED floodlights on a 5.4m telescopic mast

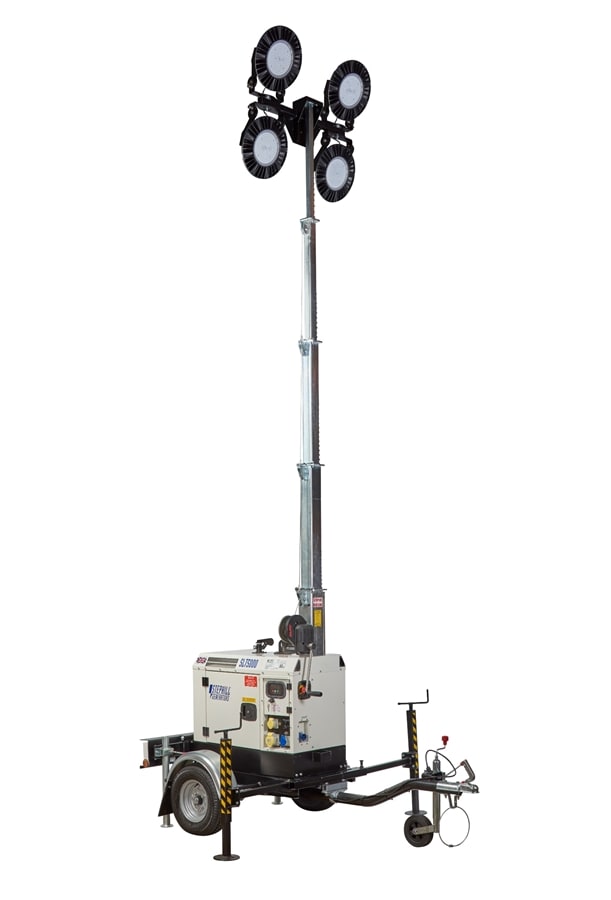

  • SLT5000 lighting tower on its transport trailer with tow hitch and stabiliser legs

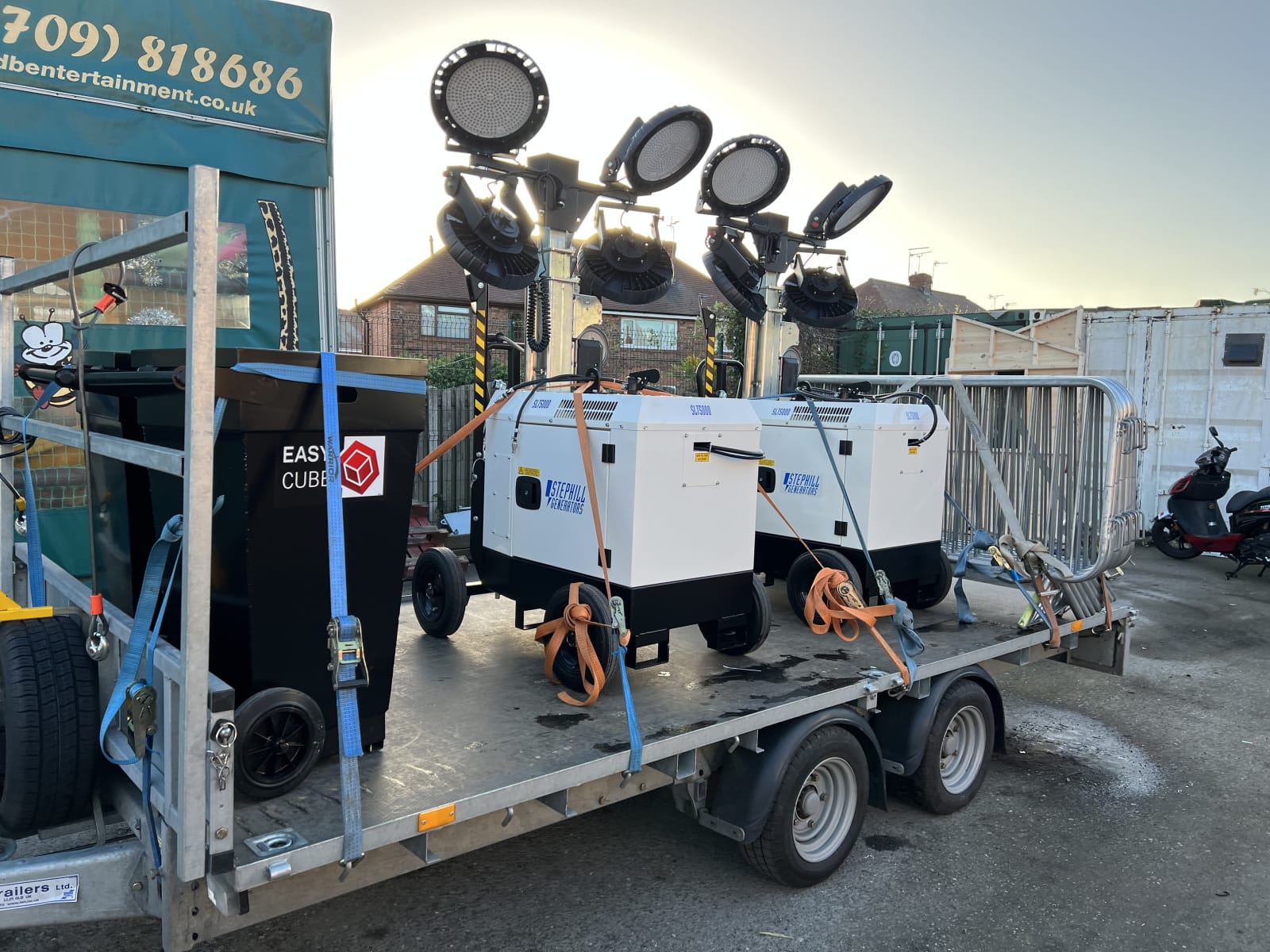

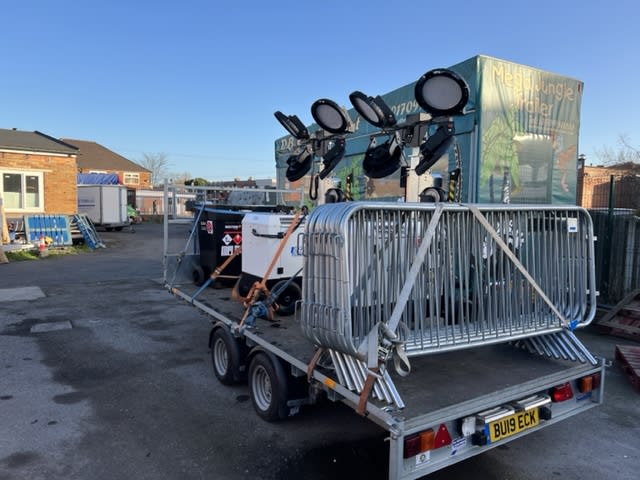

  • Pair of Stephill SLT5000 lighting towers secured for delivery

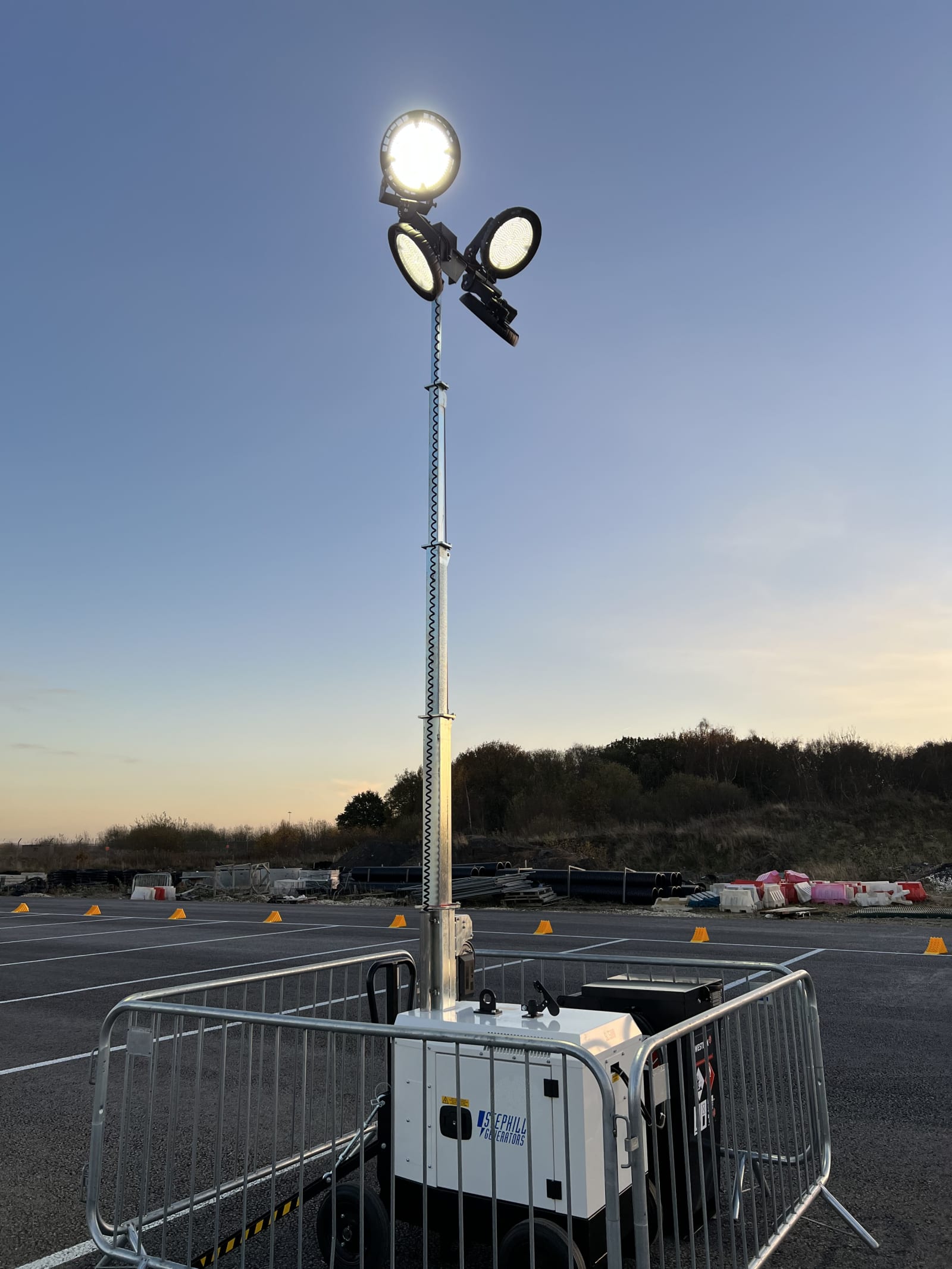

  • SLT5000 with mast extended and LED lamps brightly lit

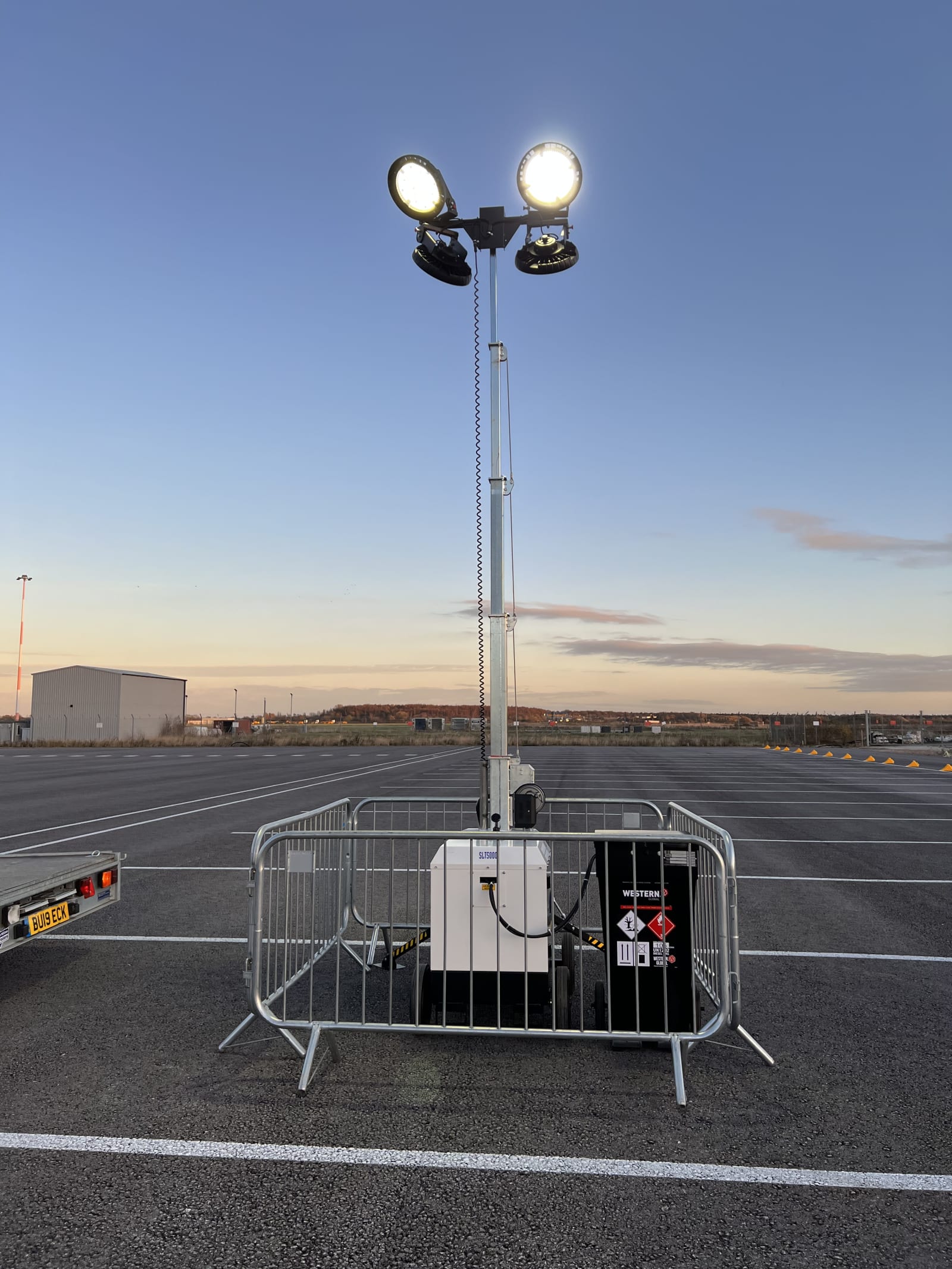

  • SLT5000 LED floodlights with three of four lamps lit

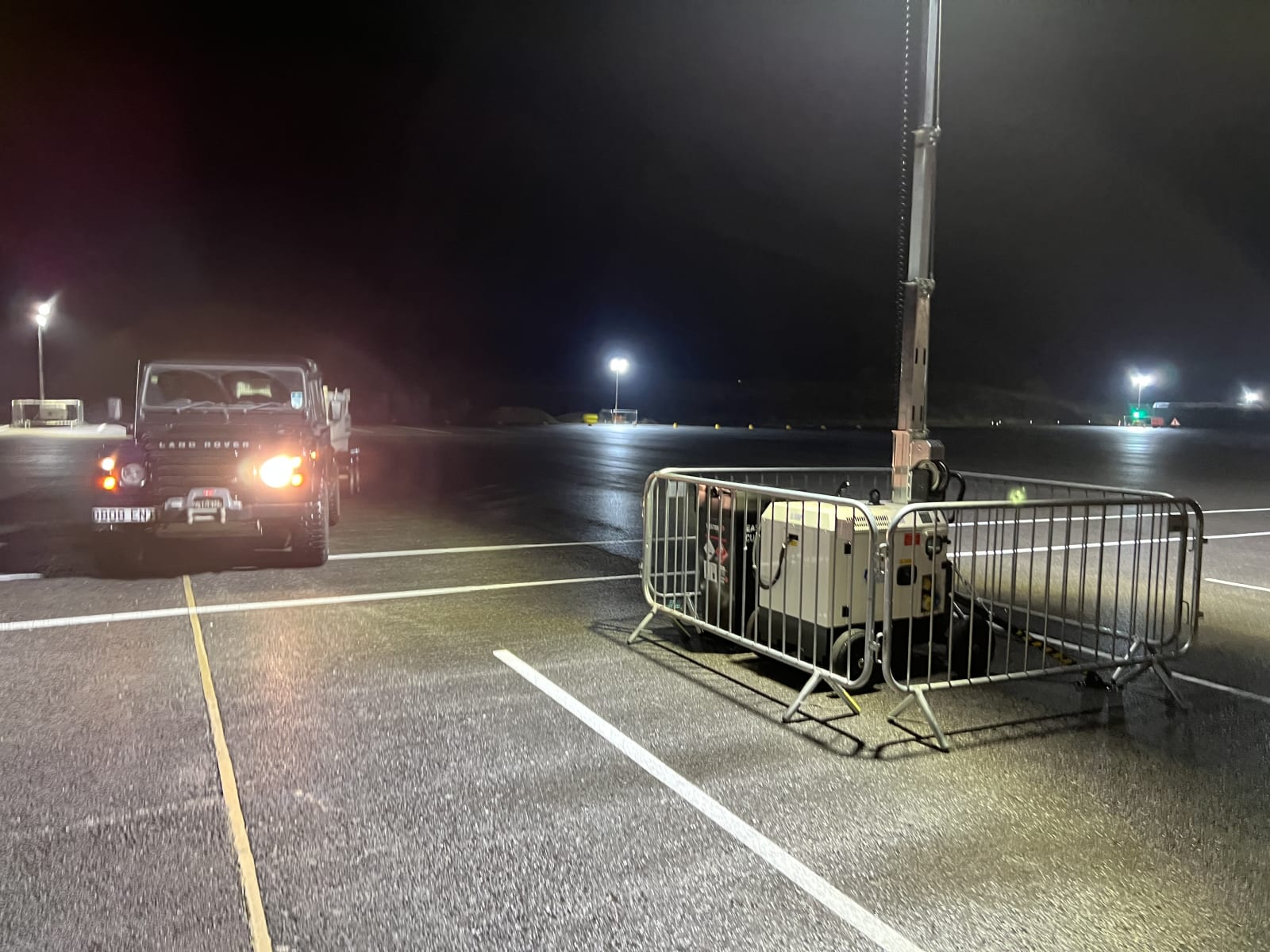

  • SLT5000 with mast fully raised and stabiliser legs deployed

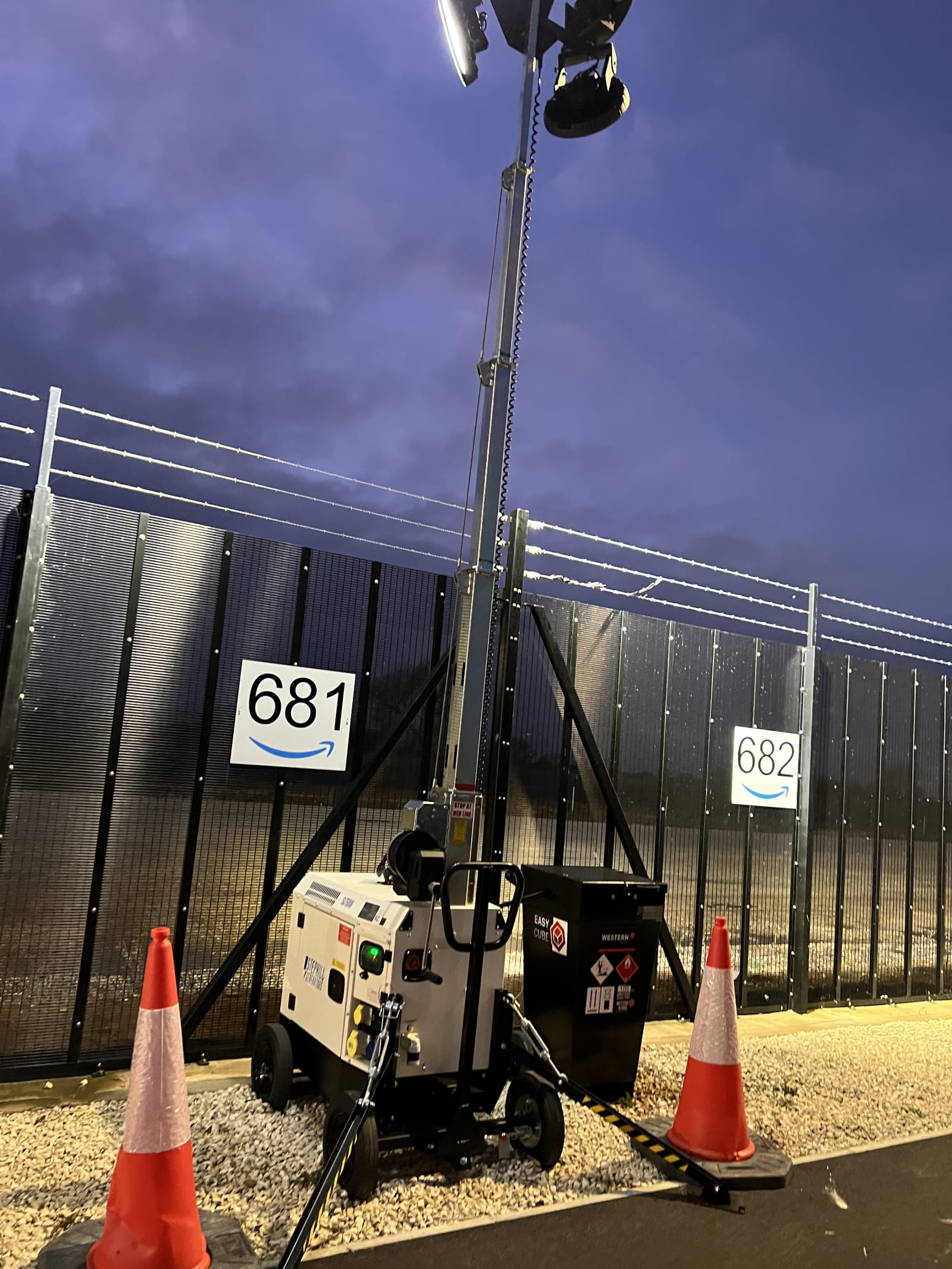

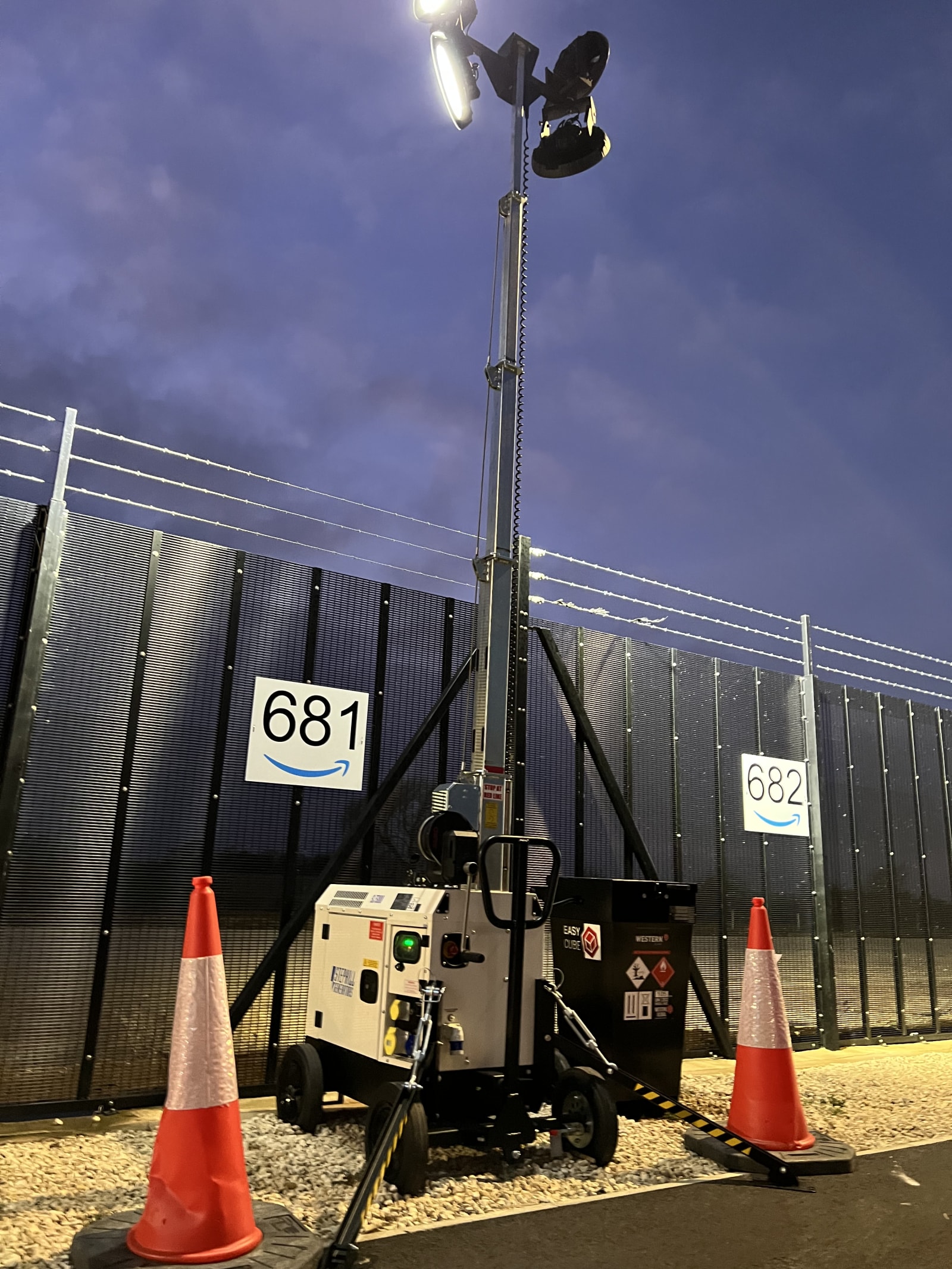

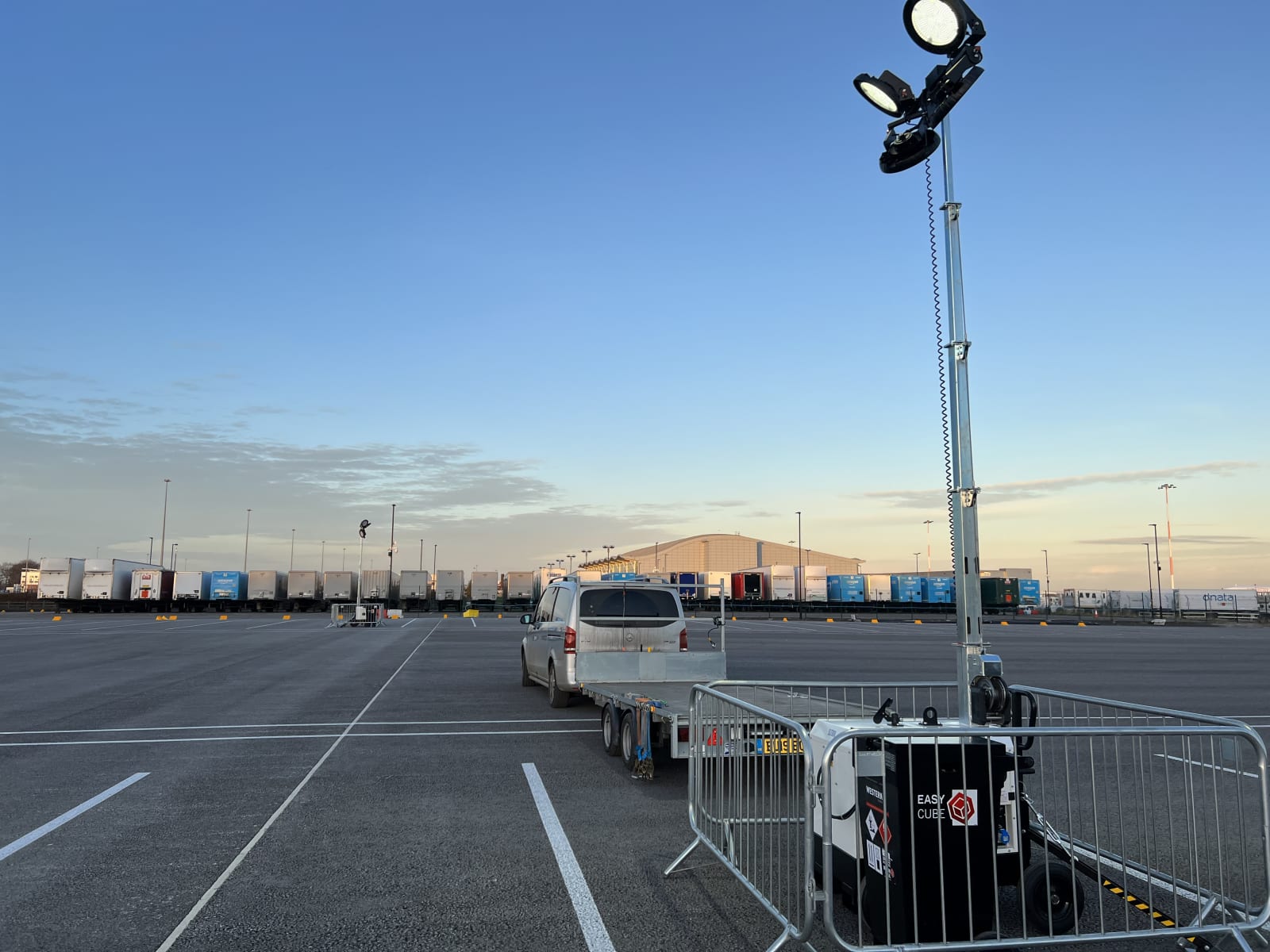

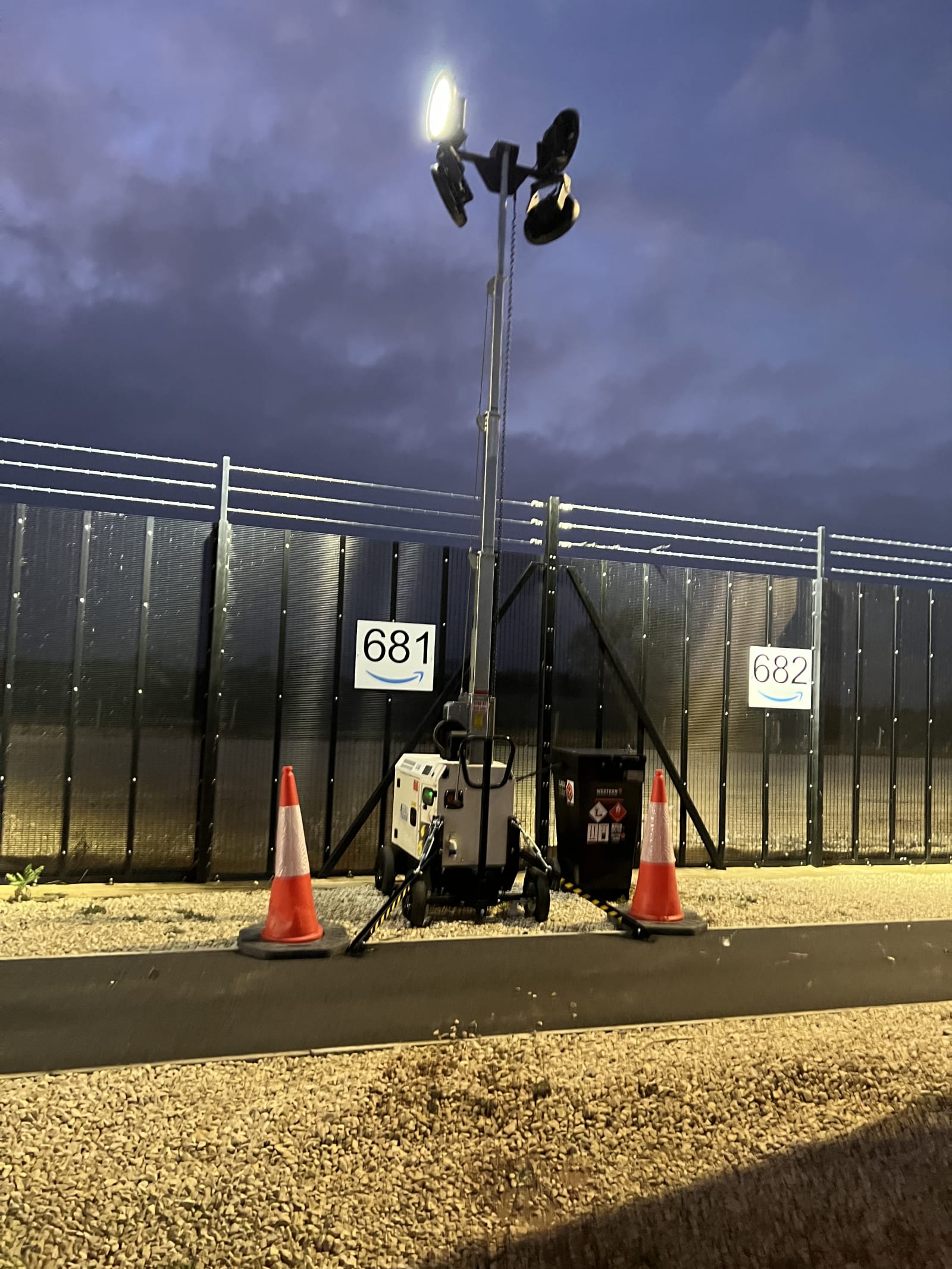

  • SLT5000 lighting tower with extended mast and external fuel tank

  • SLT5000 tower with all four LED lamps brightly lit against a dark sky

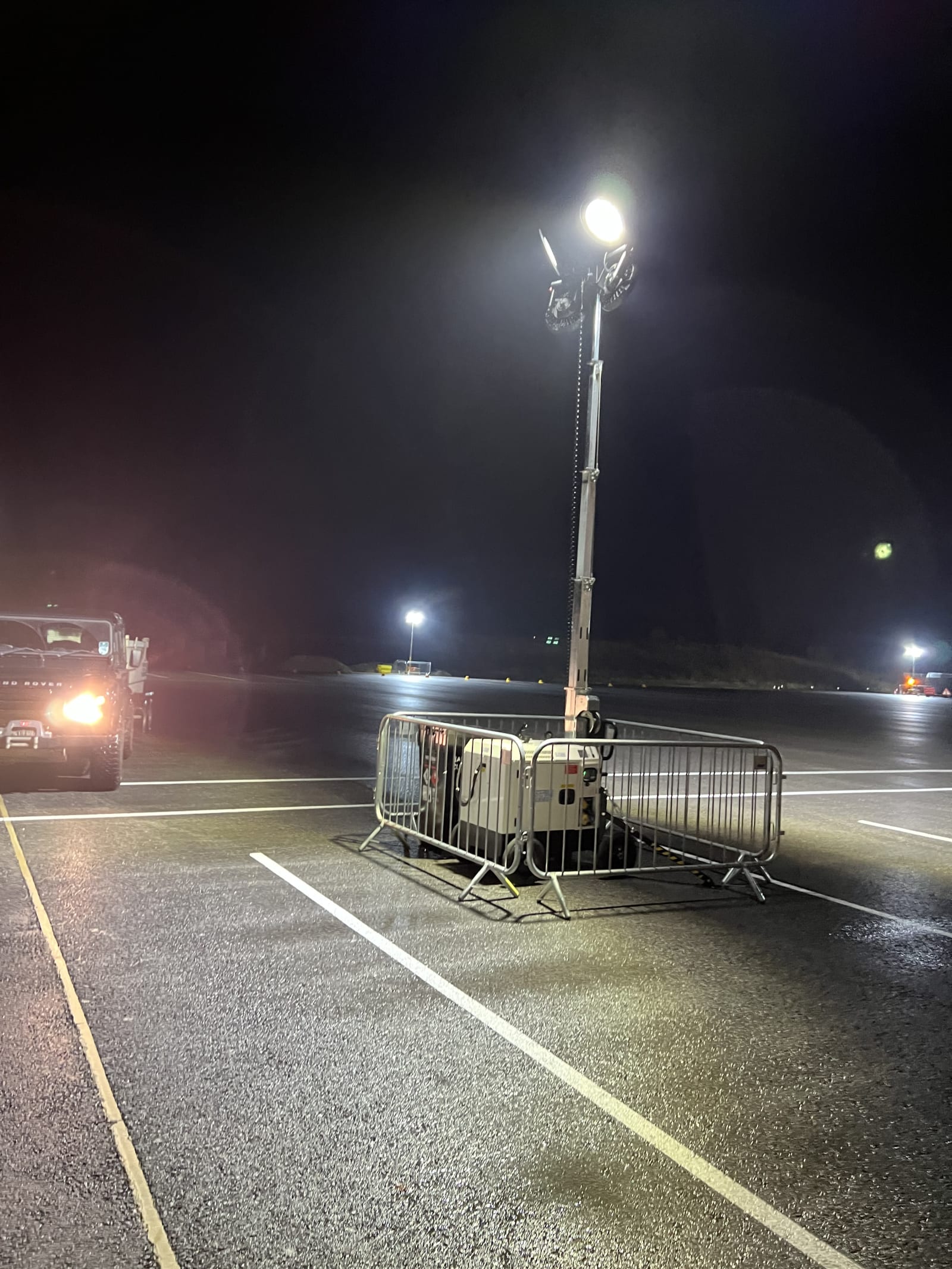

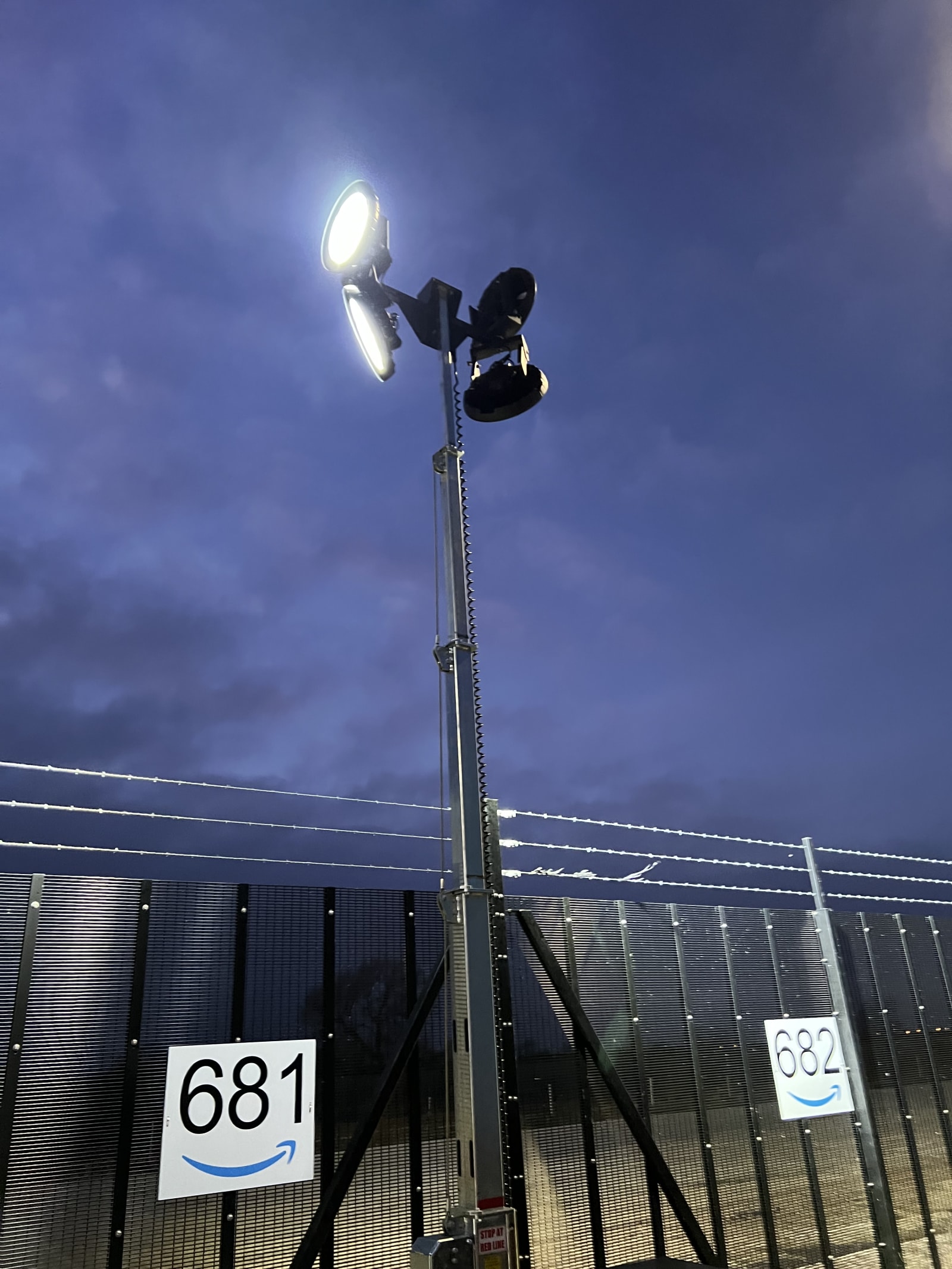

  • SLT5000 tower with LED lamp brightly lit

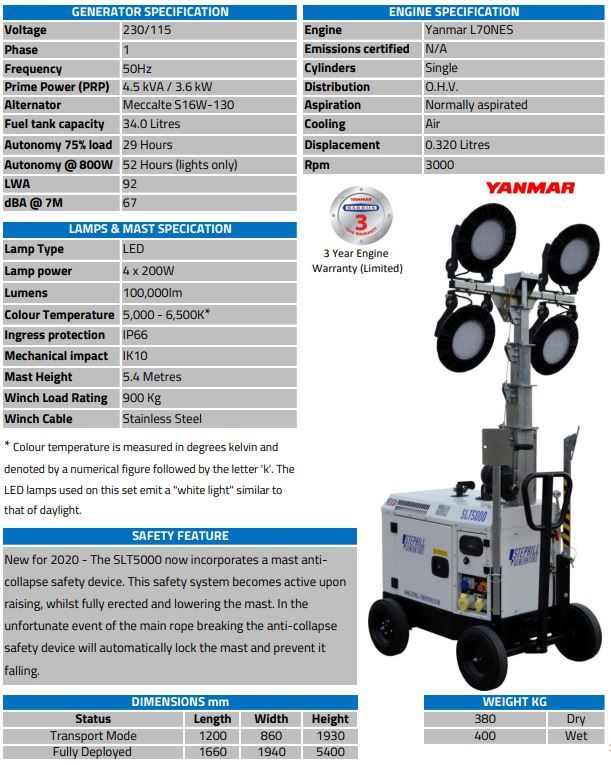

  • Manufacturer specification sheet for the Stephill SLT5000 LED lighting tower

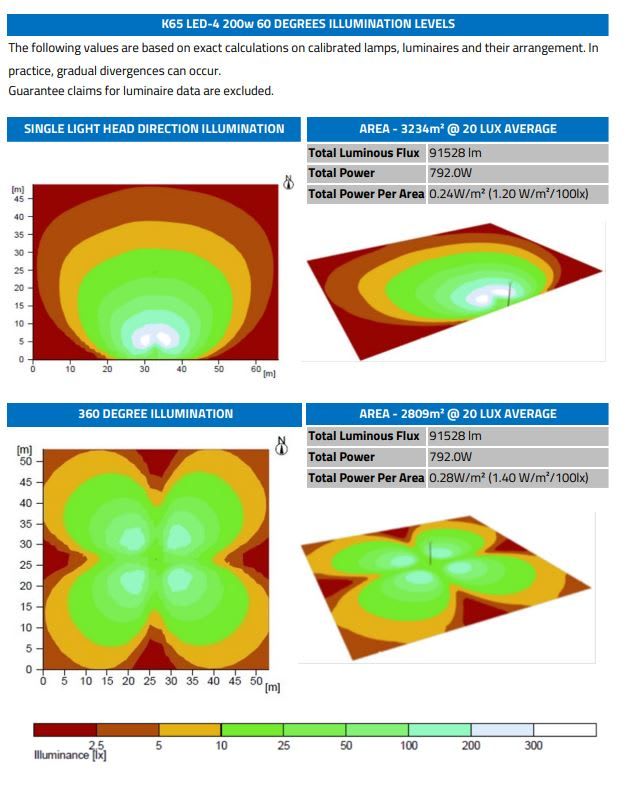

  • Lighting coverage diagram showing the SLT5000's 3200 square metre illumination area

  • SLT5000 tower with external fuel tank and extended mast

  • Close-up of an LED lamp head mounted on the SLT5000 telescopic mast

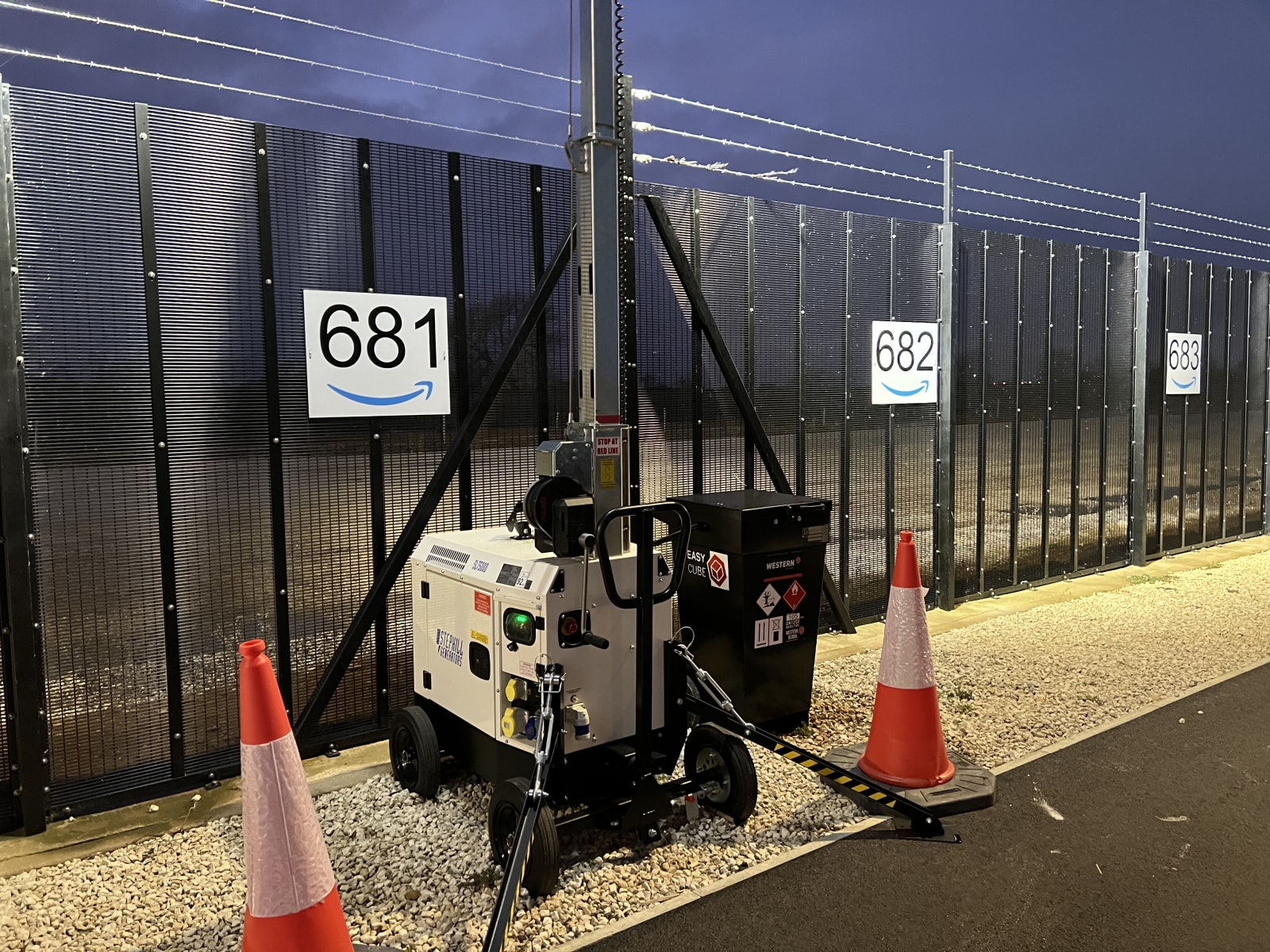

  • SLT5000 generator base with external fuel tank

  • SLT5000 tower with extended mast and generator base

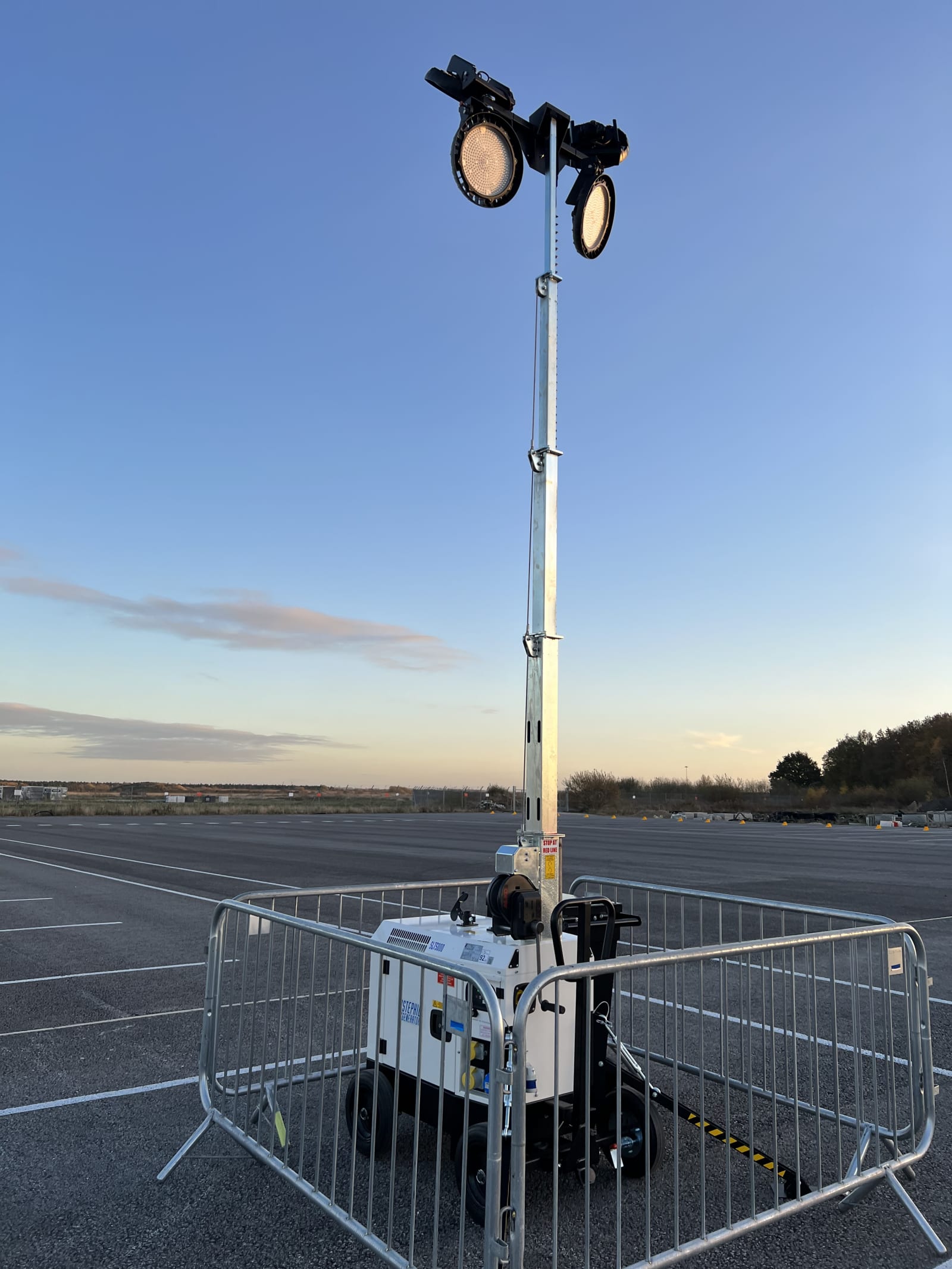

  • SLT5000 tower with mast extended

  • SLT5000 tower with all four LED lamps brightly lit from a side view

Common questions

How long will the SLT5000 run on a full tank?

52 hours in lights-only mode, or 29 hours if you're also drawing 75% of its generator capacity. The tank holds 34 litres. If you need longer, we can supply an external fuel tank or arrange refuelling.

Can I use it as a generator while the lights are on?

Yes - the SLT5000 outputs 4.5 kVA at 230V or 115V through a Meccalte alternator, and the lights only draw 800W total. That leaves plenty of capacity for power tools, PA systems, catering equipment or phone charging. Just tell us what you're planning to run and we'll check the load.

How much area will it actually light?

With all four heads pointing in one direction, the SLT5000 covers over 3,200 square metres at an average of 20 lux. In 360-degree mode it covers roughly 2,800 square metres. The heads tilt and turn independently, so you can focus light where you need it.
