Pair of galvanised Heras-style temporary fence panels forming a wheeled vehicle access gate with anti-climb mesh

Heras Vehicle Access Gate Set Hire

The set is two 2.1m anti-climb leaves that give you a 4.2m vehicle opening in a fence line. Hire from £25.

How the set works

The hire is a pair of galvanised Heras-style gate leaves, each 2.1m wide and 2m high, so the two together give a 4.2m opening. The mesh is anti-climb, welded with tight vertical wires, and the top rail is rounded to match the Heras panels either side of it.

Each leaf hinges at its outer end. Where the leaves meet, a bolt slides through a bracket on both of them and a pin drops through to hold it shut. A padlock fits through the end of the bolt. Castor wheels under the joint carry the leaves as they open, so they travel over tarmac or grass without dragging.

Steel couplers join the gate to standard Heras panels. If the fence is already standing, the gate goes in at the point where you want vehicles to cross.

Get a Quote
Close-up of the galvanised sliding bolt and drop pin joining two vehicle gate leaves

What it does in a fence line

  • Keeps deliveries moving

    Vans, 7.5 tonne lorries and small plant go through the gate. Nobody has to pull a panel out and prop it back up afterwards.

  • Locks at the centre

    The bolt passes through both leaves and takes a padlock, so the gate can be locked between deliveries.

  • Swings on castors

    Wheels at the joint carry the weight of the leaves, which helps on tarmac that isn't quite level.

  • Matches the fence height

    At 2m it stands level with standard Heras panels, so the top of the perimeter doesn't drop at the entrance.

  • Anti-climb mesh

    The mesh has tight vertical wires and a rounded top rail, the same pattern as the panels it joins.

  • Fits an existing run

    Steel couplers connect the leaves to standard Heras panels, which some people still call Harris fencing, including a run you already have on site.

Specifications

Specification Detail
Total width 4.2m (pair of 2.1m leaves)
Height 2m
Weight Approx 32-35kg per leaf
Frame Approx 38mm galvanised tube
Material Galvanised steel
Mesh type Anti-climb
Locking Sliding bolt and drop pin, padlock compatible
Mobility Castor wheels under the joint
Compatibility Standard Heras fence panels via steel couplers

Suitability

  • Indoors on Artificial Grass
  • Indoors on Hard Surface
  • Outdoors on Concrete
  • Outdoors on Grass
  • Outdoors on Grass/Hard Surface Mix
  • Outdoors on Hard Surface
  • Outdoors on Wood Chip
Total gate width
4.2m
Width of each leaf
2.1m
Height
2m
Weight per leaf
32-35kg

Sizing the opening to what's coming through

The 4.2m set covers the vehicles a site entrance usually sees: vans, a 7.5 tonne delivery lorry coming in straight, and small plant. An artic or a low loader that's wider than that, or anything towing a trailer, may want a bigger opening, so tell us what's arriving and we'll see what we can put together.

The approach matters as much as the width. A vehicle turning in off a road swings wider than one driving straight through, and the leaves need clear ground behind them to fold back into.

Pair of galvanised Heras gate leaves joined at the centre on castor wheels with anti-climb mesh

What the hire covers

The price is for one set of gates. The set is part of our event infrastructure range, alongside the panels and barriers. Signage is extra, and delivery charges may apply depending on where you are.

The leaves hang in the fence line, so the run either side needs its feet on the ground and the couplers done up before the gate goes in. On a site where the gate is opened and shut all day, or on an exposed corner, extra ballast on the feet keeps the line steady.

If the access point is on grass that vehicles cross, ground protection mats keep the surface together. Concrete Jersey barriers can sit in front of the gate as a stop for anything that shouldn't get through, cable protectors keep leads flat where they cross the route, and road cones mark the entrance for drivers who haven't been on site before.

Long-term hire rates start from £10 per week per barrier, subject to a minimum term. If the fence is going up for a season, send us the dates and the run length and we'll price the whole job.

Delivery, paperwork and venues we know

We've been hiring temporary fencing from our 25,000 sq ft warehouse near the M1 in Rotherham for over 25 years, and we deliver nationwide from there. That helps when a gate is needed at short notice or a coupler goes missing on the morning of a build.

Fencing from here has gone to the NEC Birmingham, ExCeL London and Manchester Central, and to plenty of smaller sites where the load-in is the awkward part of the job.

Full £5 million public liability insurance as standard, with indemnity to principal cover when our staff are supplied. Risk assessments and method statements emailed to you or your venue before the event.

The set close up

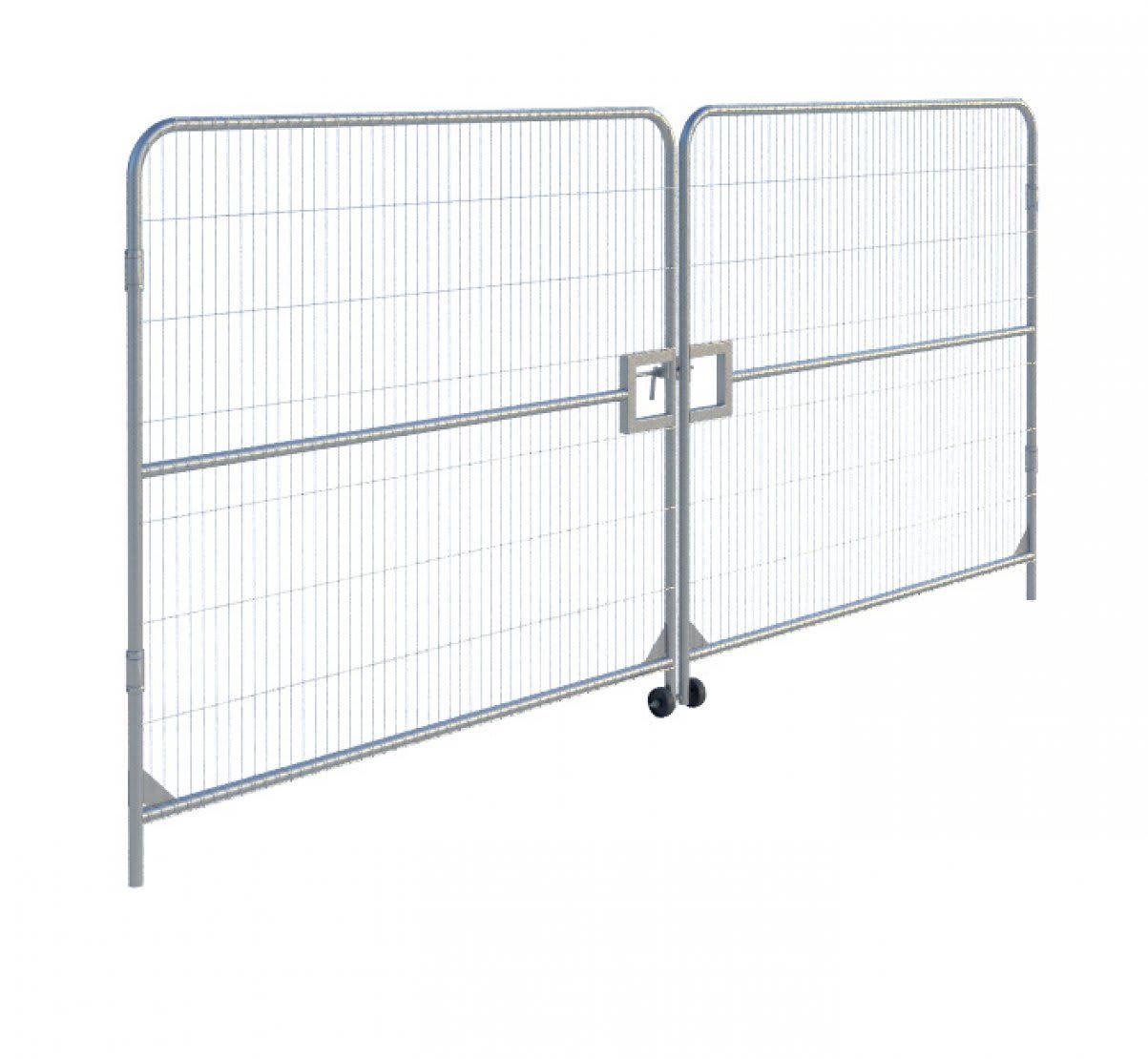

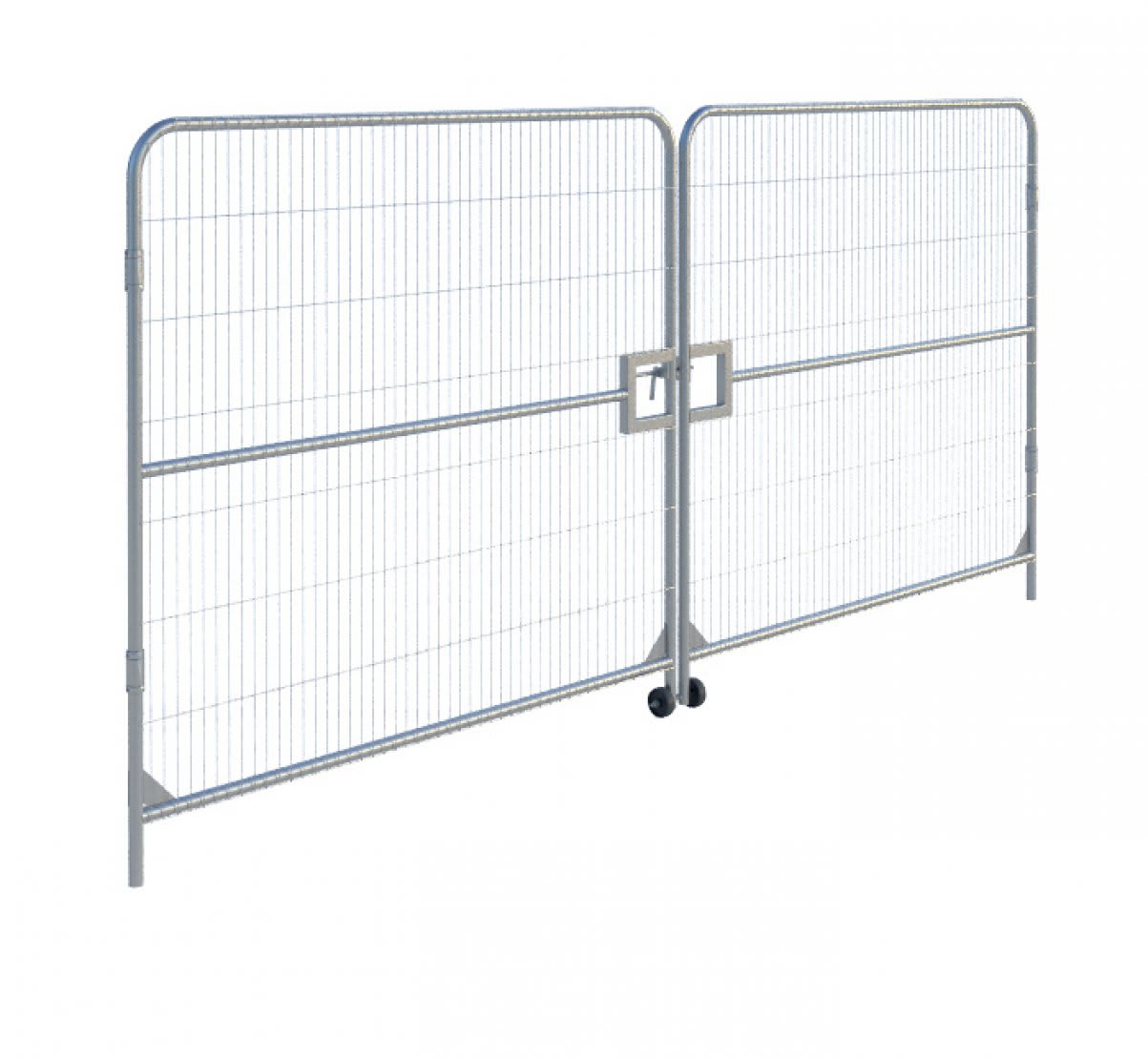

  • Pair of galvanised Heras gate leaves joined at the centre on castor wheels with anti-climb mesh

    Two 2.1m gate leaves joined at the centre, with castor wheels under the joint and angled feet at the outer ends

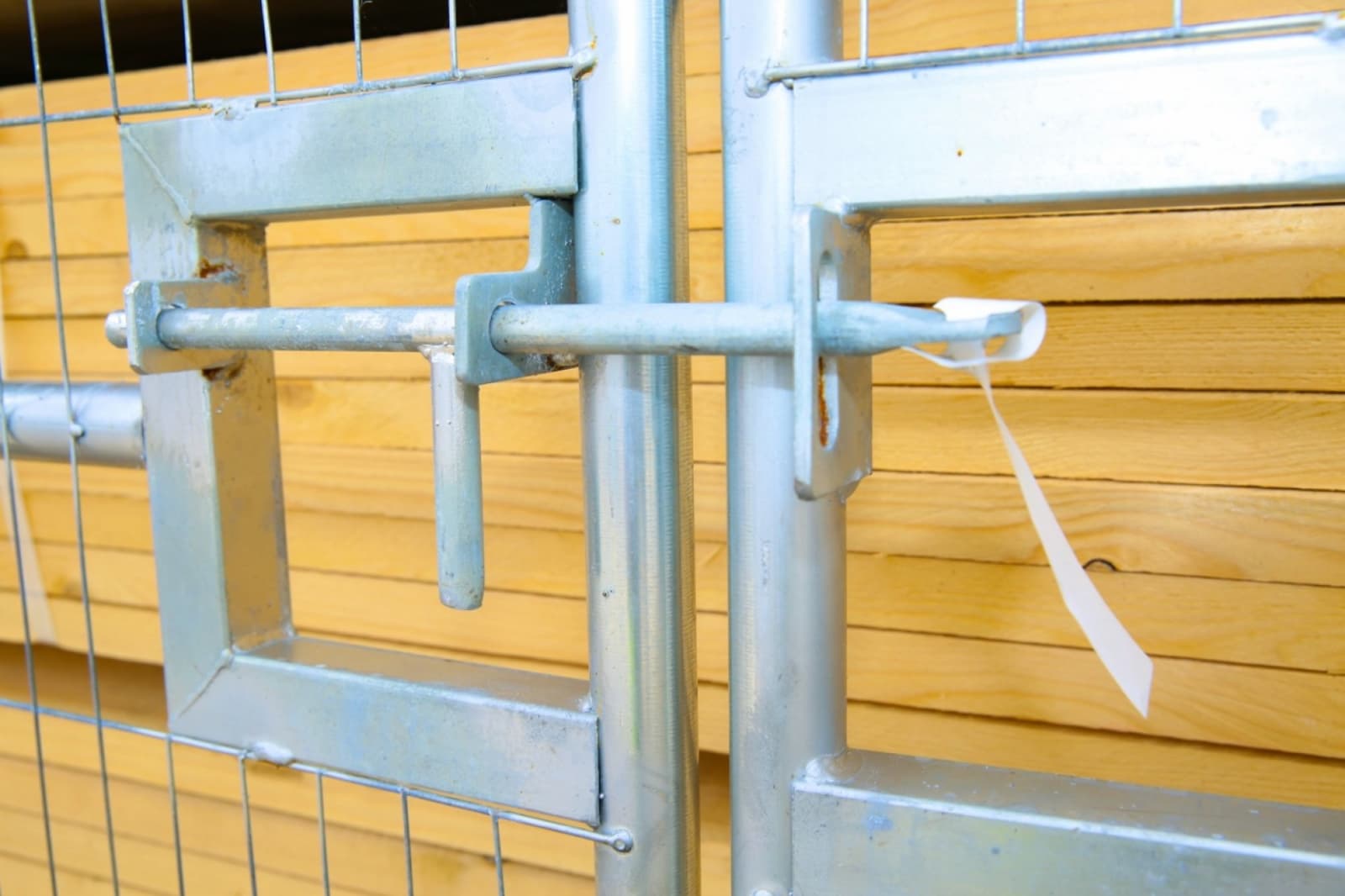

  • Close-up of the galvanised sliding bolt and drop pin joining two vehicle gate leaves

    The sliding bolt passing through both brackets, with the drop pin hanging down and a plastic tag on the end

Common questions

What size opening does the gate give?

The two leaves together are 4.2m wide, and with both of them open there's about 4m of clear gap. That covers most vans, a 7.5 tonne lorry and small plant. If the vehicle is wider, or it's towing a trailer, tell us what's coming and we'll work out whether this gate is the right one.

Will it fit Heras fencing we already have?

Yes. The leaves join standard Heras panels, using steel couplers. The connection is the industry standard, so couplers from another supplier should still fit. If you're hiring the panels from us, the feet and couplers come with them.

Can the gate be locked?

The bolt through the centre takes a padlock, which you supply so you keep the key. For an unattended site or a perimeter that has to stay shut, we'd add anti-tamper couplers on the panel joints. Mention it when you enquire and we'll add them to the quote.

Does the gate need fence panels either side?

The leaves are made to hang in a fence line, so the run either side needs to be standing on its feet with the couplers fitted before the gate goes in. If you want a gate with no fence around it, send us the layout and we'll work out what it needs to stand safely.

Related products

If you're building a perimeter, the gate pairs with our Heras temporary fencing panels, because it's the same system and the same couplers. We also hire crowd control barriers, concrete Jersey barriers, ground protection mats and cable protectors for the parts of the site the gate doesn't cover. Send us the dates, the venue and the fence layout and we'll price it as one job.

Hire the vehicle access gate set

Send your dates, the venue and the perimeter length you need, and we'll come back with a quote. If you want a full site-security package - panels, gates, concrete weights, signage - mention it in your message and we'll price the lot.
