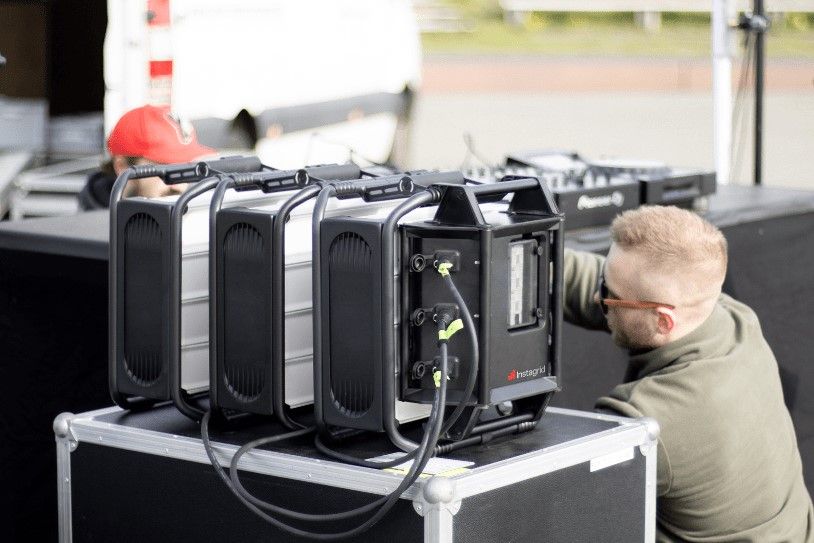

Three Instagrid ONE Max portable battery units cabled together through a LINK smart safety power distributor

Instagrid LINK 6.3 kWh Battery Generator Package Hire

Silent 230V stand power for indoor exhibitions and trade shows. Three ONE Max units and a LINK power distributor. From £295 + VAT.

The Instagrid LINK package pairs a LINK smart safety power distributor with three ONE Max portable battery units, giving a combined 6.3 kWh of 230V mains power. Instagrid is a German manufacturer that builds professional-grade power supplies for construction, film, events and emergency services, and the ONE Max won Hire Industry Product of the Year at the HAE EHA Awards.

Where a single ONE Max covers a small stand for a day, the LINK package is built for exhibition stands that pull a bit more - lighting rigs, screens, PA and interactive games running at the same time - and for multi-day shows where you need headroom. The LINK distributor gives you up to three RCD-protected outputs, so you are not daisy-chaining strips behind the stand.

The reason it exists for exhibitions is that it is silent and produces no emissions. Diesel generators are banned on the floor at venues including the NEC Birmingham, ExCeL London, Manchester Central and the Telford International Centre, and running long mains cables across carpeted aisles to a remote power point is not always practical. Three batteries cabled through the LINK sit behind a counter or under a table and keep the stand running without an engine doing the same.

Island Mode is the part that matters for longer shows. When a battery runs down we swap it out for a charged one without dropping power to the stand, so screens and interactive games stay on. Each ONE Max recharges from a standard 13A socket in under three hours, which means a rotating set of batteries can keep a stand running through a full three-day exhibition.

If you are not sure whether 6.3 kWh covers your stand load, send us the kit list and we will work out the runtime. We can also supply a single ONE Max on its own if that is all the stand needs, or add extra batteries to the rotation for longer shows.

Get a Quote

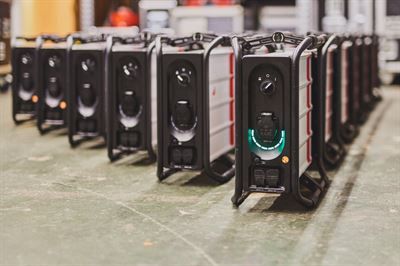

Instagrid ONE Max portable battery unit with the illuminated status ring around the central power outlet

The LINK package at a glance

kWh combined capacity
6.3
kW continuous per battery
3.6
kW peak per battery
18
ONE Max units in the package
3

Technical specs
Combined capacity 6.3 kWh (3 × 2.1 kWh Instagrid ONE Max)
Continuous output 3.6 kW (16 A) at 230V AC / 50Hz per battery
Peak power 18 kW (80 A) per battery
LINK distributor Up to 3 RCD-protected outputs
Weight Around 20 kg per unit
Dimensions 420 × 210 × 420 mm per unit
Weather rating IP54 (rain and dust resistant)
Noise level Under 10 dB(A) per unit - effectively silent
Charge time Under 3 hours per battery from a 13A socket
Hot-swap Island Mode - swap batteries without dropping power
Per-unit outputs 13A UK (BS1363-2) + Neutrik powerCON TRUE1
Cooling Passive (no fans, no moving parts)
Case Recycled aluminium
Protection class Class II / double-insulated
App Bluetooth monitoring for iOS and Android

Suitability

  • Indoors on hard surfaces - exhibition halls, convention centres, broadcast studios
  • Indoors on carpeted and artificial grass surfaces
  • Outdoors on concrete, tarmac, hard standing
  • Outdoors on grass (flat, dry ground)
  • Outdoors on mixed grass and hard surface
  • Outdoors on wood chip and gravel

Not suitable for grid-tied devices that feed power back into the supply, or equipment requiring a protective conductor connection for safety.

Runtime at an exhibition stand

Divide 6,300 by the total wattage of everything on the stand to get a rough runtime in hours from a full charge across all three batteries. Some realistic exhibition examples:

  • A stand lighting rig of four 150W LED floods (600W) - around 10 hours
  • A 420W LED fixture, two 100W screens and a 200W PA (820W) - around 7.5 hours
  • A Batak reaction wall drawing 150W plus 300W of stand lighting (450W) - around 14 hours
  • A laptop and small monitor setup at 100W - over 60 hours

Add the wattages up first if you are running several items. A typical exhibition stand pulling 1 kW across lighting, a screen and audio gets roughly 6 hours from the full package, which covers a standard show day without needing a top-up.

Each battery's 18 kW peak rating covers the startup surge from motors, compressors and older amplifiers - the sort of momentary draw that trips up cheaper battery packs. Island Mode is where the package earns its keep over a single unit: a depleted battery comes out and a charged one goes in mid-show without the power dropping, and recharge takes under three hours from a 13A socket. For a three-day exhibition we rotate batteries through the charger so the stand never goes dark.

If you are not sure whether 6.3 kWh covers your stand load, send us the kit list - what is running, for how many hours each day, and any startup surges - and we will work out the runtime and whether you need a fourth battery on rotation.

What you get when you hire from us

We have been hiring power and distribution kit to exhibitions from our 25,000 sq ft warehouse near Sheffield and the M1 since 1999, and we own around 95% of what is on this site outright. The Instagrid fleet is no exception - it is our stock, charged and maintained in-house, and it turns up in our own vehicles delivered by our own team.

Every LINK package hire includes:

  • The LINK smart safety power distributor
  • Three Instagrid ONE Max units (2.1 kWh each), fully charged
  • Charging cables
  • Delivered in our own vehicles and set up by our own team before guests arrive.
  • Full £5 million public liability insurance as standard, with indemnity to principal cover when our staff are supplied.
  • Risk assessments and method statements emailed to you or your venue before the event.
  • Technical support during the show if needed

We regularly deliver Instagrid kit to indoor exhibitions at the NEC Birmingham, ExCeL London, Manchester Central and the Telford International Centre - venues where diesel gen-sets are not permitted on the floor. If 6.3 kWh is not enough, we can add more ONE Max units to the rotation, and for heavier loads we carry diesel generators from 6 kVA to 30 kVA alongside distribution boards, cabling and lighting, all on a single booking with one invoice.

Get a Quote

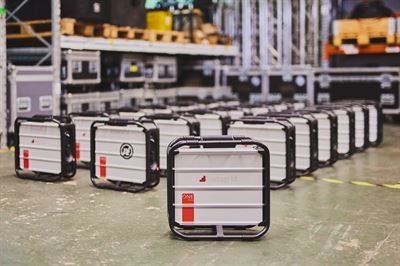

A single Instagrid ONE Max battery unit with the fleet of identical units stored behind it

Gallery

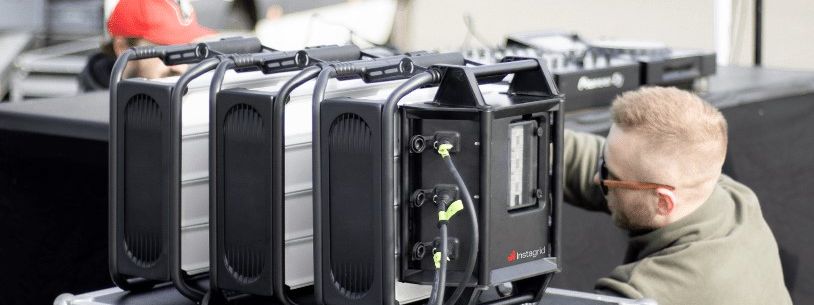

  • Three Instagrid ONE Max battery units cabled together through the LINK distributor

  • Instagrid ONE Max with the status ring illuminated around the central power outlet

  • Instagrid ONE Max portable battery unit showing the red ONE Max badge and instagrid logo on the front panel

Common questions

How does the hot-swap work during a show?

Island Mode lets us pull a depleted ONE Max out of the LINK and slot a charged one in without the power dropping, so anything on the stand stays on - screens, lighting, interactive games, the lot. Each battery recharges from a standard 13A socket in under three hours, so for a multi-day show we rotate units through the charger and the stand never goes dark. You do not need to shut anything down or wait for a reboot.

Can I use the LINK package at the NEC or ExCeL?

Yes - that is the main reason this package exists. Diesel generators are not permitted on the exhibition floor at the NEC Birmingham, ExCeL London, Manchester Central or the Telford International Centre, because of the fumes and the fire risk. The Instagrid produces no exhaust and runs at under 10 dB(A) per unit, quiet enough to sit on the stand itself rather than in a loading bay. The IP54 rating means it handles a busy exhibition hall without complaint.

Is 6.3 kWh enough for a full exhibition stand?

Divide 6,300 by the total wattage on the stand to get the rough runtime in hours. A stand pulling 1 kW across lighting, a screen and audio gets about 6 hours from a full charge, which covers a standard show day. A heavier stand with multiple screens, a PA and interactive games might pull 1.5 kW and get around 4 hours before the first battery swap. Send us the kit list with what is running and for how long, and we will work out the runtime and whether you need a fourth battery on rotation.

Can I add more batteries for a longer show?

Yes. The LINK takes up to three ONE Max units at once, but we can put extra charged batteries on the truck for rotation, and for heavier 3-phase loads the sensible step up is one of our diesel generators from 6 kVA to 30 kVA alongside distribution boards, cabling and lighting. A lot of exhibition clients run the Instagrid on the stand for the silent, indoor bit and keep a diesel gen-set outside for the larger outdoor kit.

Related power and distribution kit

The LINK package covers the silent, indoor part of an exhibition build - stand power where diesel is not allowed. For heavier loads, long runs or backup, our diesel generators, distribution units and cabling go on the same booking below. If a single 2.1 kWh ONE Max battery is all a smaller stand needs, we hire that on its own too.

Hire the Instagrid LINK package

Send us your show dates, venue, and what is going on the stand - lighting, screens, audio, interactive games, the lot - and we will come back with a quote. If you need extra batteries on rotation, distribution boards, cabling or a backup diesel generator for outdoor kit, mention that too and we will put everything on one invoice.
