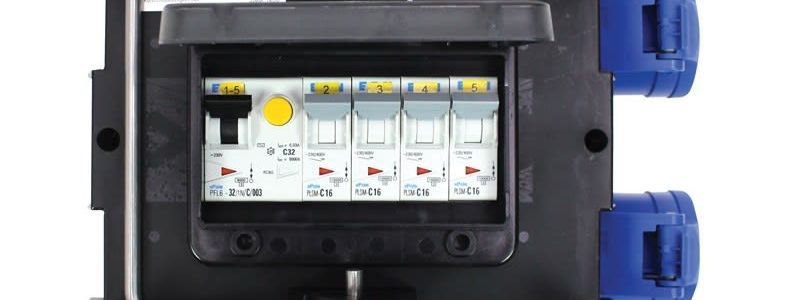

PCE 32 amp power distribution box with breakers behind a clear cover and blue 16 amp outlets

32A 240V IMST 4x 16A Out Power Distribution Unit

Hire From £25.

This is the box that turns one generator feed into four usable supplies. It takes a single 32A 240V input and splits it into four 16A outputs - each with its own MCB - so four stalls, rigs or attractions can run off one feed without anyone daisy-chaining extension leads. A 32A through socket passes the full feed on to the next distro in the chain.

They're made in Austria by PCE, and we rate them as the best portable distros you'll find for the money. The body is shock-resistant polyamide with a folding steel carry handle, the breakers sit behind a clear window so you can check trip states at a glance, and the whole thing is IP44 rated and stackable - the warehouse photo shows a few of ours ready to go out.

Protection is proper: a 32A 30mA RCBO on the input and a Type C 16A MCB on each output, so one tripped stall doesn't take the other three down with it.

Get a Quote

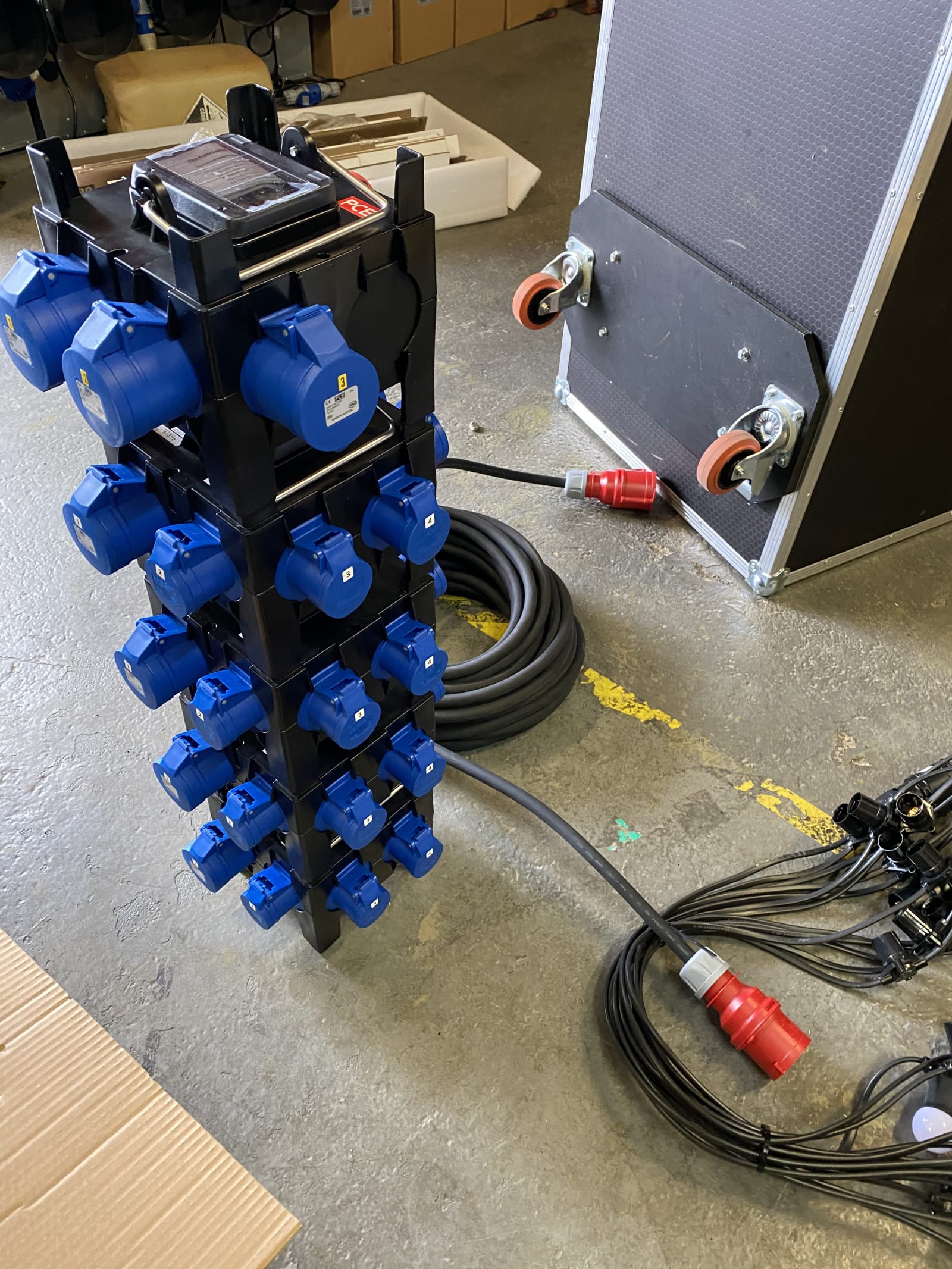

Stack of PCE IMST distribution boxes in the warehouse with a 63A three-phase cable

What it's for

  • Feeding multiple stalls from one generator

  • Catering rows and fun food stands

  • Powering several games or attractions

  • Lighting and PA distribution

  • Chaining distros via the through socket

  • Independent breaker per output

Specifications

  • PCE IMST distribution box, made in Austria
  • Input: 32A 230V 2P+E IP44 appliance inlet
  • Input protection: 32A 30mA 2P RCBO
  • Outputs: 4x 16A 230V 2P+E IP44 sockets
  • Each output on its own 16A Type C MCB
  • Plus 1x 32A 230V through socket (unprotected pass-through)
  • 8 modules behind a clear MCB window
  • Shock-resistant polyamide body
  • Folding steel carry handle, stackable
  • IP44 rated

Good to know

The through socket is a straight pass-through with no protection of its own, so it's for feeding the next distro down the line, not an appliance.

IP44 means it handles outdoor event conditions - rain and splashes - but it should still sit up off waterlogged ground. We can supply the generator, cabling and cable protectors alongside, so the whole power run arrives on one van. Tell us what needs powering and we'll spec the distribution for you.

Gallery

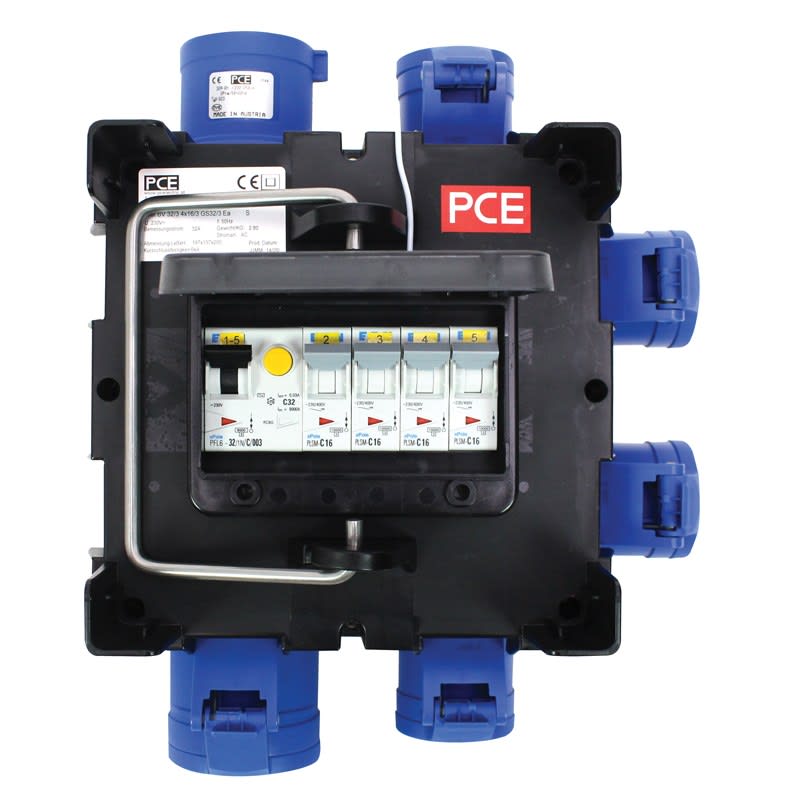

  • Front of the PCE IMST distro showing breakers and 16A outlets

  • IMST distros stacked ready for a job

Which locations do we cover?

Temporary power goes out from our warehouse near Sheffield - five minutes from the M1 - to events nationwide, and has done since 1999. We run distribution for everything from single fun-food stalls to multi-attraction fundays, at venues from local showgrounds to the NEC and ExCeL London, with risk assessments emailed ahead of the day where venues need them.
